50 Way 19" Voice Patch Panel

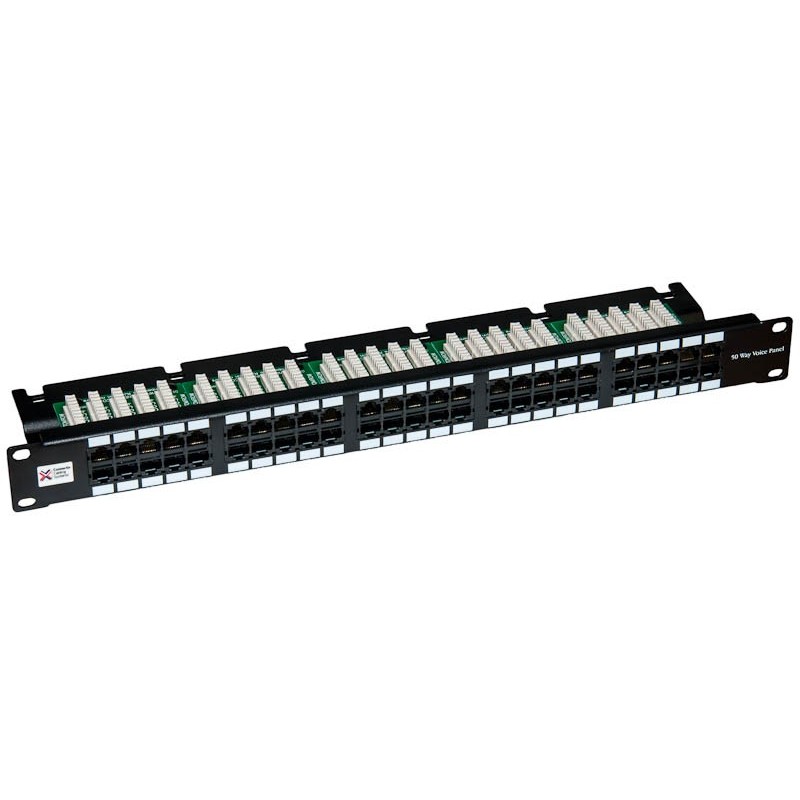

Cabinet space is too valuable to have it taken up by stacks of voice panels, which is why Connectix offer a high density voice panel packing 50 dedicated voice ports in a 1u panel.

Each 8 way RJ45 socket has three pairs connected. This ensures that the panels can be used with analogue, digital and ISDN systems

Features:

• 50 voice ports in 1u
• 8 way RJ45 sockets with three pairs connecte
• Analogue, digital and ISDN systemssupported

Specification

• Width - 483mm (19”)
• Depth - 120mm
• Height - 1U (44mm)
• Fixing Centres - 467mm
• Material - 1.5mm thick mild steel CR4 BS1449
• Finish - Black powder coat to BS6496
• Socket Labels - Silk screened blocks
• IDC Labels - Pairs indicated by PIN numbers
• RJ45 Sockets - 2 x 5 unshielded stacked RJ45 jacks
• IDC Blocks - Industry standard 4 way IDCs
• PCB - 1.6mm double sided PTH boards
• Wiring Specification - Pairs 1, 2 & 3 connected straight through Pair 4 not connected
