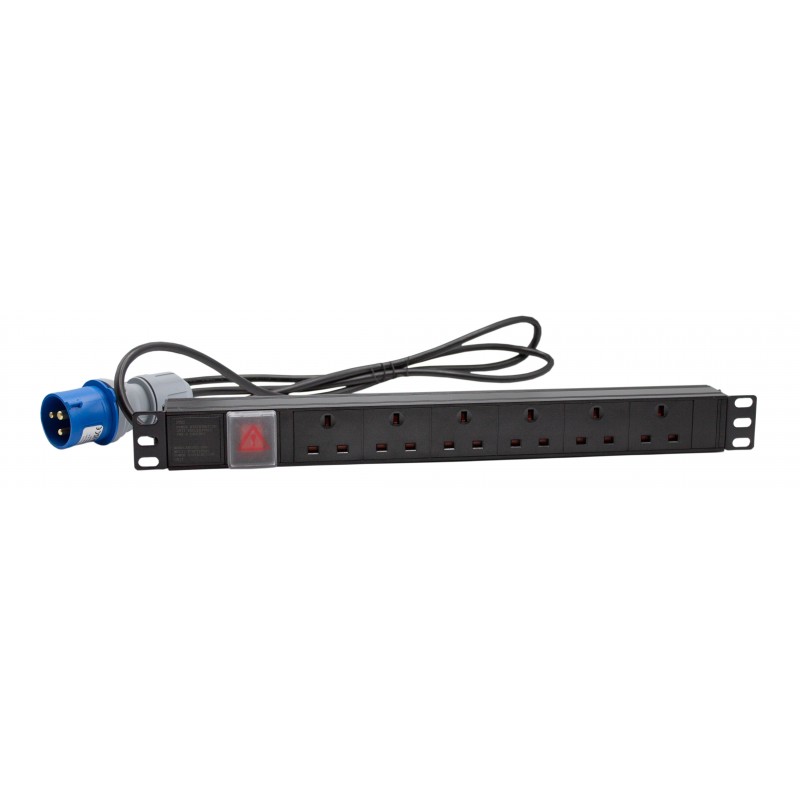

UK Socket / C16 Commando Plug Rack PDU
UK Socket / C16 Commando Plug Rack PDU UK Socket / C16 Commando Plug Rack PDU

UK Socket / C16 Commando Plug Rack PDU

Rack Power Distribution Unit with BS 1363 UK Sockets & 16Amp C16 Commando Input Plug - Available with or without Surge Protection

RR-P1-4-16A

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

A full range of high quality BS1363 UK outlet Power Distribution Units range with a built-in blue LED quality ammeter.

Key Features:

  • Robust all aluminium housing
  • BS1363 UK Sockets
  • External earth facility
  • Choice of standard and filtered solutions with input plug variants

PLEASE NOTE DESIGN OF THE FILTERED PDU's WITH THE PART CODE STARTING PDU- WILL VARY IN DESIGN.

Dimensions

ProductMounting CentresHeightOverall Length
4 Way PDU with 16A IEC 60309 Plug 465 mm44.5 mm482.6 mm
6 Way PDU with 16A IEC 60309 Plug465 mm44.5 mm482.6 mm
8 Way PDU with 16A IEC 60309 Plug551.6 mm44.5 mm572.6 mm
10 Way PDU with 16A IEC 60309 Plug655.6 mm44.5 mm678.6 mm
12 Way PDU with 16A IEC 60309 Plug762.6 mm44.5 mm785.6 mm
4 Way Surge Protected PDU with 16A IEC 60309 Plug 465 mm44.5 mm482.6 mm
6 Way Surge Protected PDU with 16A IEC 60309 Plug465 mm44.5 mm482.6 mm
8 Way Surge Protected PDU with 16A IEC 60309 Plug659.2 mm44.5 mm680.2 mm
