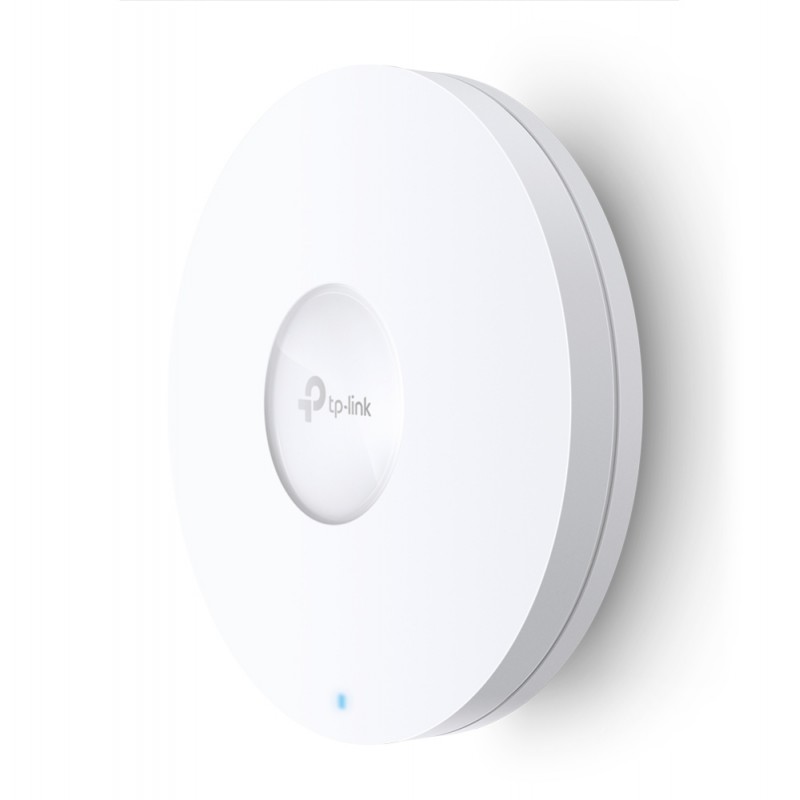

TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point
TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point

TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point

IEEE 802.11ax/ac/n/g/b/a, 1G LAN, 2.4/5 GHz, PoE, 243x243x64 mm

EAP620 HD

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

High-Density Connectivity with 4× Increased Capacity OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.Advanced Wi-Fi Speed with 4 Spatial Streams The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.Omada SDN—Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.Seamless Roaming 802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.Secure Guest Network with Facebook Wi-Fi and SMS Login Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
CertificationCE, FCC, RoHS
Depth243 mm
Ethernet LAN (RJ-45) ports1
Height64 mm
Operating temperature (T-T)0 - 40 °C
Width243 mm
Product colourWhite
Transmitting power (CE)20/23 dBm
Transmitting power (FCC)23 dBm
Service Set Identifier (SSID) featuresMultiple SSIDs
Number of SSID supported16
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1201 Mbit/s
Antenna direction typeomni-directional

eap620hd.pdf

TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point Data Sheet

Download (12.08M)
