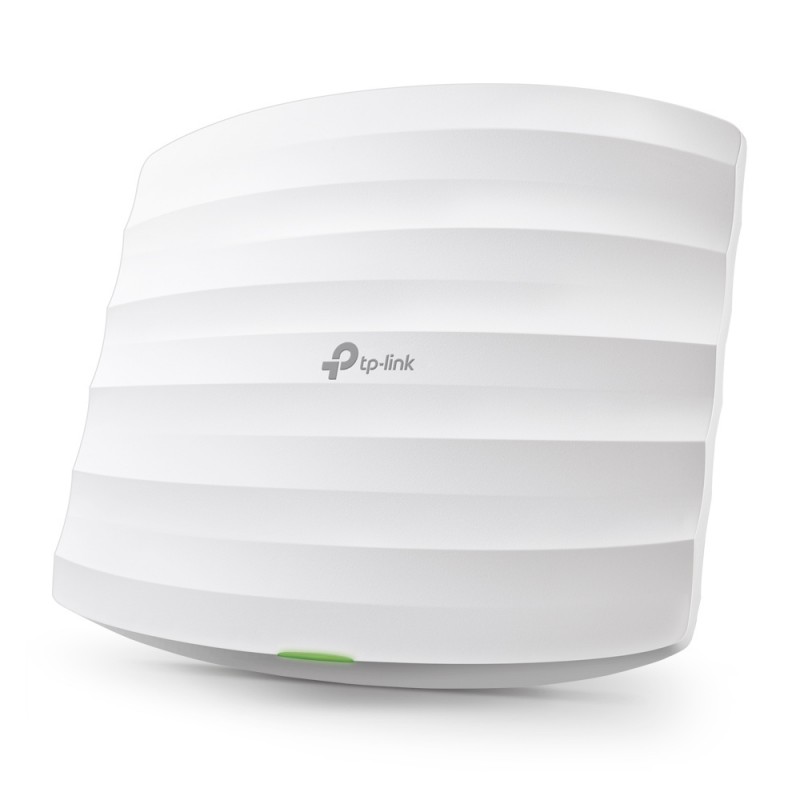

TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Gigabit Ethernet, 2.4GHz-5GHz, 802.11ac/n/g/b/a, 867Mbps/450Mbps, White

EAP225-3

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

An Affordable Business-Class

802.11ac MU-MIMO Wi-Fi Solution



Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.



Cloud Centralized Management

- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.



Secure Guest Network with Facebook Wi-Fi and SMS Authentication

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.



Multiple PoE Options for Easy Installation

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.



Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.



Meet Our New Hero Product!

The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
CertificationCE, FCC, RoHS
Depth181.7 mm
Ethernet LAN (RJ-45) ports1
Height37.3 mm
Operating temperature (T-T)0 - 40 °C
Width205.4 mm
Product colourWhite
Number of SSID supported16
Maximum data transfer rate (2.4 GHz)450 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Automatic channel scanningY
Local AP managementTelnet
Antenna direction typeomni-directional

eap225-3.pdf

TP-LINK AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point Data Sheet

Download (1004.03k)
