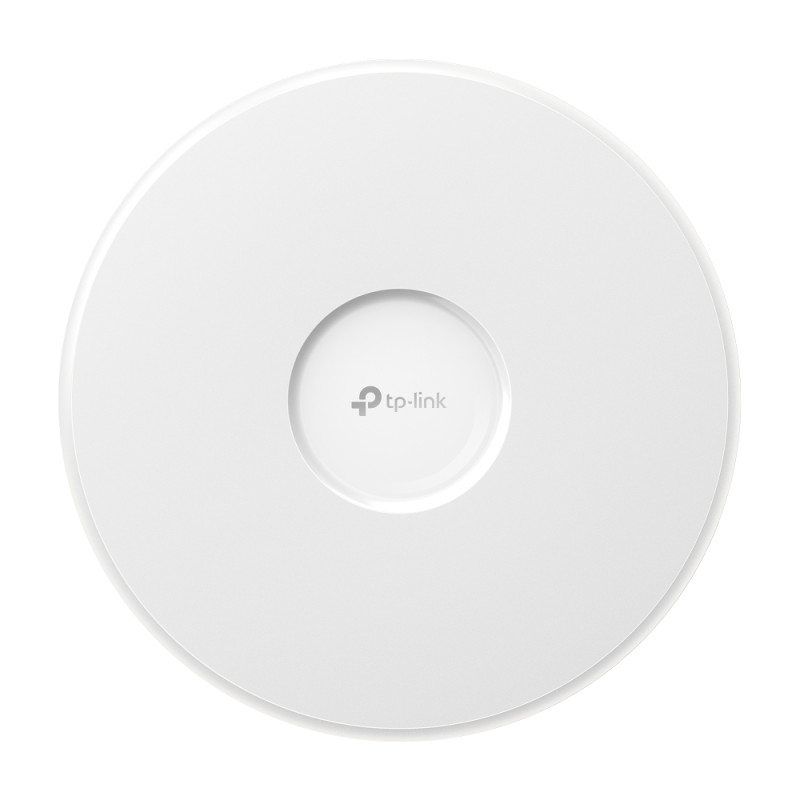

TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz), 802.11 a/b/g/n/ac/ax/be, 1× 2.5G Ethernet, 220 × 220 × 32.5 mm

eap772

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Ultra-Thin Enterprise WiFi 7 Access Point

- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1× 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology

Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

Boosted Network Security

- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
BluetoothY
CertificationCE, FCC, RoHS, IC
Depth220 mm
Ethernet LAN (RJ-45) ports1
Height32.5 mm
Operating temperature (T-T)0 - 40 °C
Width220 mm
Product colourWhite
Service Set Identifier (SSID) featuresMultiple SSIDs
BeamFormingY
Number of SSID supported24
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)2880 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)Y
6 GHzY
Maximum data transfer rate (6 GHz)5760 Mbit/s

eap772.pdf

TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point Data Sheet

Download (2.88M)
