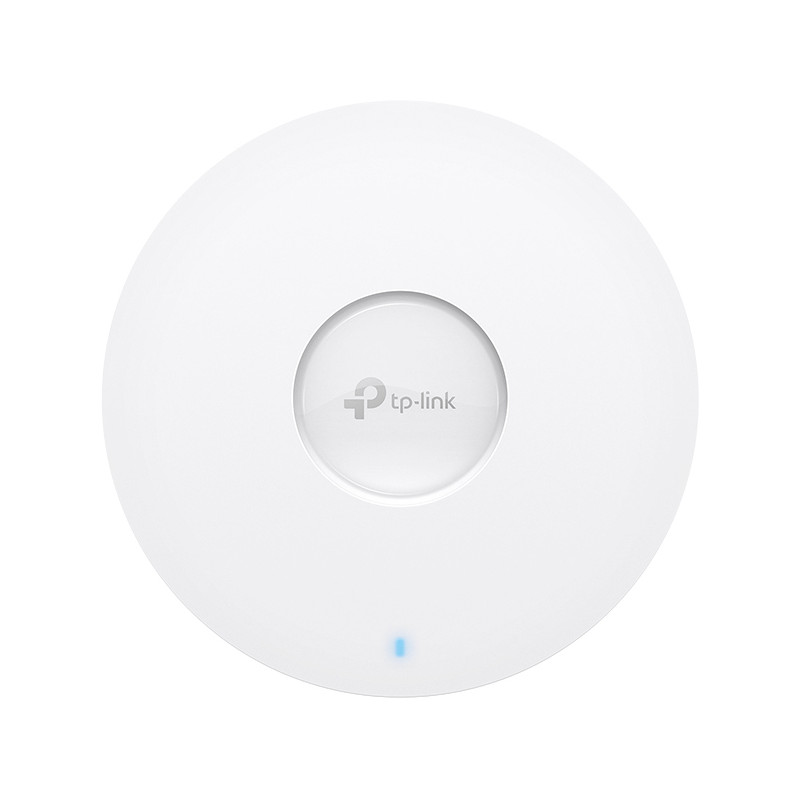

TP-Link AX6000 Ceiling Mount WiFi 6 Access Point
TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point TP-Link AX6000 Ceiling Mount WiFi 6 Access Point

TP-Link AX6000 Ceiling Mount WiFi 6 Access Point

2.4GHz (1148Mbps), 5GHz (4804Mbps), 802.11ax/ac/n/g/b/a, 1× 2.5 Gigabit PoE+ Port, 220 × 220 × 32.5 mm

eap680

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Boost Your Business with High-Performance Business WiFi 6

Wi-Fi 6 Brings Real Power to Your Business

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance*
Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Easy Deployment & Higher Performance by Omada Mesh §
Easy Pairing, Less Wiring
With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between APs, while self-healing ensures your devices stay online even when one AP is disrupted.

Boosted Network Security and Efficiency

Secure Guest Network with up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering
Automatically moves dual band devices onto the wider 5 GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks.

Airtime Fairness
Increases average network throughput in heavily congested environments.
CertificationCE, RoHS
Depth220 mm
Ethernet LAN (RJ-45) ports1
Height32.5 mm
Operating temperature (T-T)0 - 40 °C
Width220 mm
Product colourWhite
Service Set Identifier (SSID) featuresMultiple SSIDs
BeamFormingY
Number of SSID supported16
Maximum data transfer rate (2.4 GHz)1148 Mbit/s
Maximum data transfer rate (5 GHz)4804 Mbit/s
Automatic channel scanningY
Antenna direction typeomni-directional
6 GHzN
Wi-Fi Multimedia (WMM)/(WME)Y

eap680.pdf

TP-Link AX6000 Ceiling Mount WiFi 6 Access Point Data Sheet

Download (8.37M)
