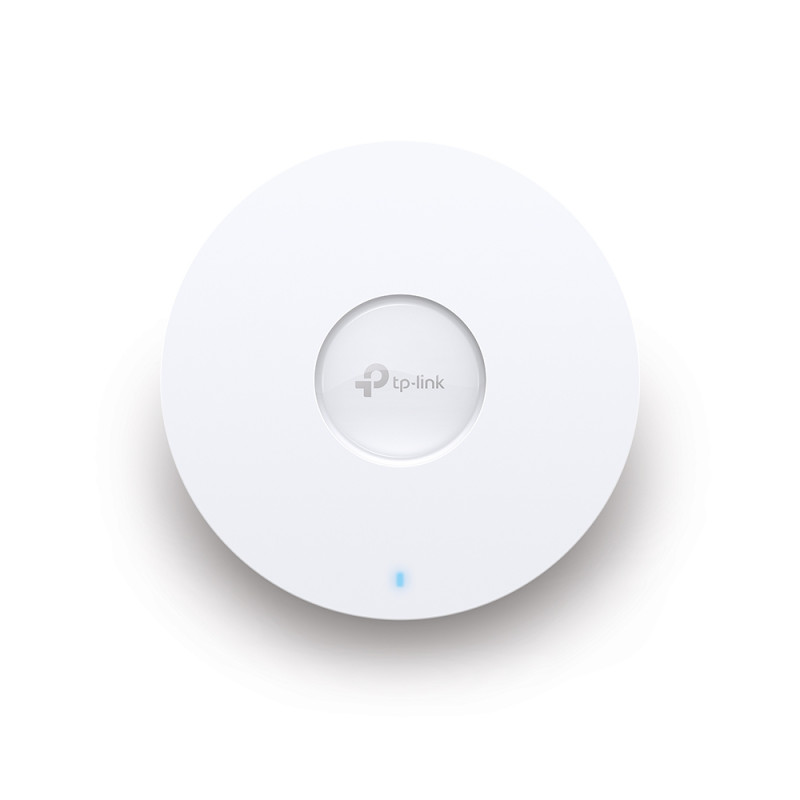

TP-Link AX5400 Ceiling Mount WiFi 6 Access Point
TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point TP-Link AX5400 Ceiling Mount WiFi 6 Access Point

TP-Link AX5400 Ceiling Mount WiFi 6 Access Point

2.4GHz (574 Mbps), 5GHz (4804 Mbps), IEEE 802.11ax/ac/n/g/b/a, 1× 2.5 Gigabit Ethernet (RJ-45), 802.3at PoE, 243 x 243 x 64 mm

eap670new

In Stock

High-End Business WiFi 6 to Power Up Your Business
AX5400 Ceiling Mount Wi-Fi 6 Access Point

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz
574 Mbps on 2.4 GHz

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160

Auto Channel Selection and Power Adjustment
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment§

Seamless Roaming
Uninterrupted streaming when moving between APs§

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Designed for Business Environments
Requiring High-Performance WiFi

High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Boosted Network Security and Efficiency

Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness
Increases average network throughput in heavily congested environments
CertificationCE, FCC, RoHS
Depth243 mm
Ethernet LAN (RJ-45) ports1
Height64 mm
International Protection (IP) codeIP67
Width243 mm
Product colourWhite
Transmitting power (CE)
Transmitting power (FCC)
Service Set Identifier (SSID) featuresMultiple SSIDs
BeamFormingY
Number of SSID supported16
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)4804 Mbit/s
Automatic channel scanningY
Antenna direction typeomni-directional
Remote Authentication Dial-In User Service (RADIUS)Y
6 GHzN

eap670new.pdf

TP-Link AX5400 Ceiling Mount WiFi 6 Access Point Data Sheet

Download (8.85M)
