TP-LINK JetStream
TP-LINK JetStream TP-LINK JetStream

TP-LINK JetStream

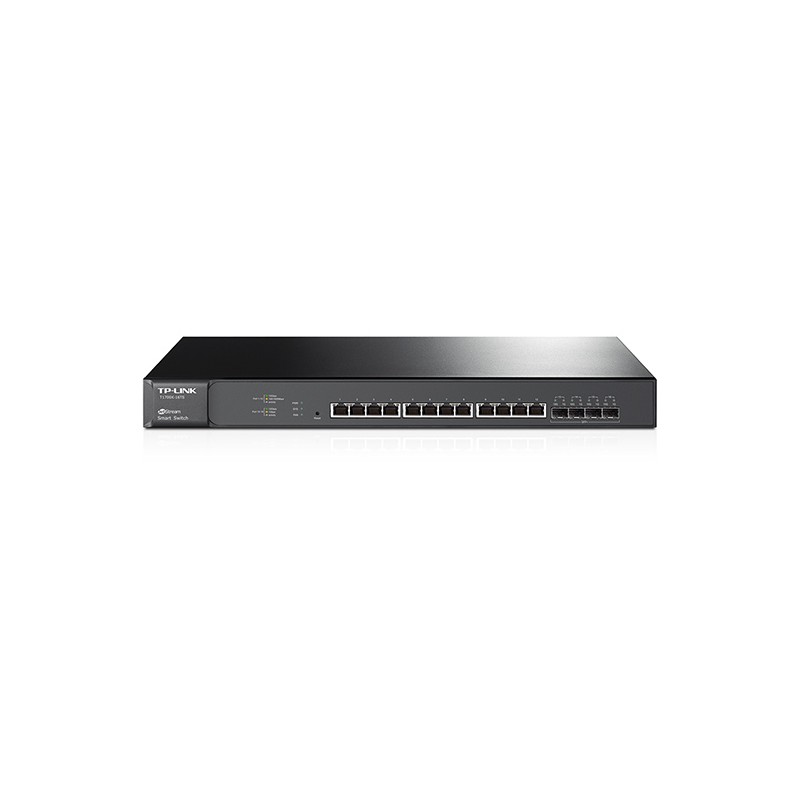

10GBase-T Smart Switch, 12 x RJ-45, 4 x 10G SFP+ Slots

T1700X-16TS

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- Equipped with 12 10GBase-T RJ45 Ports and 4 10G SFP+ Fiber Ports, providing 320Gbps Switching Capacity

- 10GBase-T Technology provides a cost-effective method for migrating from current network to 10G Ethernet by utilizing existing CAT5e/CAT6 short connections (up to 55m) and CAT6A/CAT7 connections (up to 100m).

- L2+ feature, Static Routing help route internal traffic for more efficient use of network resources

- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication

- Comprehensive IPv6 support for management, QoS and ACL

- WEB/CLI managed modes, SNMP, RMON enhance management

- Dual Firmware Image improves reliability and up-time of your network



Affordable 10-Gigabit Switching Solution for Growing SMBs



T1700 Series 10G Smart Switches



In a world of expanding enterprises and growing virtualization, cloud-based services and applications, like VoIP, HD streaming video, and IP surveillance, SMB networks need to evolve beyond simple reliability to provide increased scalability, higher bandwidth, and enhanced performance. TP-LINK’s new T1700 Series 10G Smart Switches represent an ideal solution that meets these requirements. The series includes the T1700X-16TS Full 10-Gigabit Smart Switch and the T1700G-28TQ Gigabit Stackable Smart Switch with 10G Uplink, which both provide high levels of performance, scalability, and cost-effectiveness that SMBs require from their 10G networking solutions.



Future-Proof 10GBase-T Technology



Until recently, 10-Gigabit connectivity was available only in the expensive fiber based technology that supports high-speed access to the network backbone or data center environment.



Today, 10GBase-T Technology is becoming more common and affordable. Low-Latency, Line-Rate 10G Copper Base-T is backward compatible with Fast Ethernet and Gigabit Ethernet and can automatically negotiate between higher and lower speed connections. Most importantly, 10GBase-T provides a cost-effective method for migrating from your current network to 10G Ethernet by utilizing your existing CAT5e/CAT6 RJ-45 short connections (up to 55m) and CAT6A/CAT7 connections (up to 100m). This reduces cabling complexity and ultimately results in significant savings for customers.
10G supportYes
CertificationCE, FCC, RoHS
Depth220 mm
Form factor1U
Height44 mm
Operating temperature (T-T)0 - 40 °C
Width440 mm

T1700X-16TS.pdf

TP-LINK JetStream Data Sheet

Download (705.49k)
