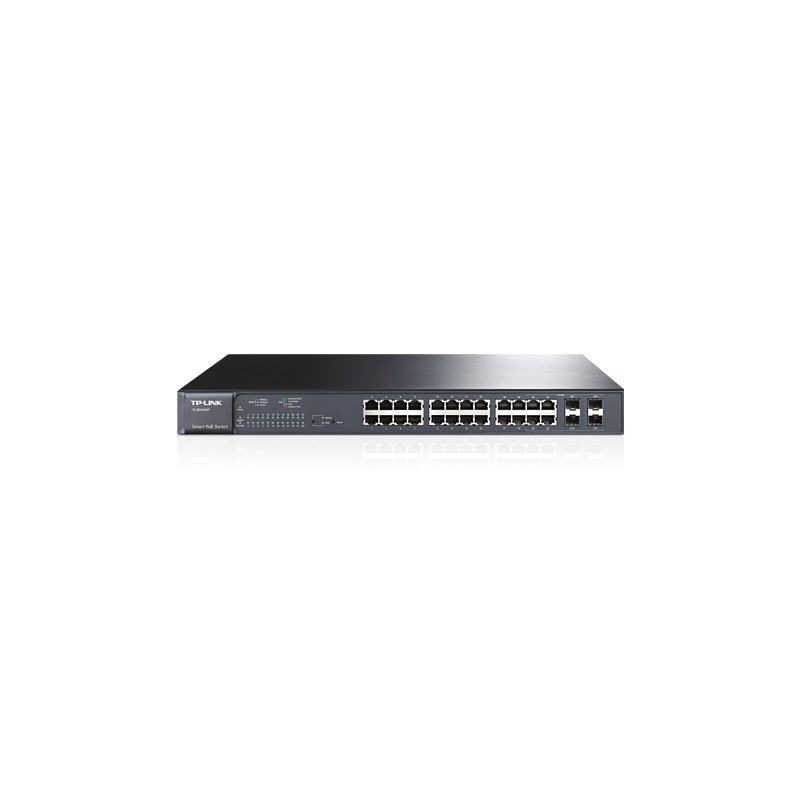

TP-LINK TL-SG2424P
TP-LINK TL-SG2424P TP-LINK TL-SG2424P

TP-LINK TL-SG2424P

24-Port Gigabit Smart PoE Switch with 4 Combo SFP Slots

TL-SG2424P

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The TL-SG2424P provides 24 10/100/1000Mbps ports that supports 802.3at/af-compliant PoE, with a total PoE power supply up to 180W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 4 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. With all these advanced features, the Gigabit Smart PoE Switch is an ideal choice for small and medium business networking.



TL-SG2424P has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-LINK Gigabit Smart PoE Switch TL-SG2424P provides you the ideal access-edge solution.



IEEE 802.3at/af-compliant Power over Ethernet.



The TL-SG2424P supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 180W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2424P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.



Advanced QoS Features.



To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.



Abundant Layer 2 Features.



For more application of layer 2 switches, TL-SG2424P provides comprehensive layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.



Enterprise Level Management Features.



TL-SG2424P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
10G supportNo
CertificationCE, FCC, RoHS
Depth330 mm
Form factor1U
Height44 mm
Operating temperature (T-T)0 - 40 °C
Power over Ethernet (PoE) ports quantity24
Width440 mm

TL-SG2424P.pdf

TP-LINK TL-SG2424P Data Sheet

Download (1.65M)
