CCS 800mm x 1000mm Server Cabinet
CCS 800mm x 1000mm Server Cabinet CCS 800mm x 1000mm Server Cabinet CCS 800mm x 1000mm Server Cabinet CCS 800mm x 1000mm Server Cabinet CCS 800mm x 1000mm Server Cabinet CCS 800mm x 1000mm Server Cabinet CCS 800mm x 1000mm Server Cabinet CCS 800mm x 1000mm Server Cabinet

CCS 800mm x 1000mm Server Cabinet

CCS Server Rack Designed to House Servers & 19" Equipment

009-000-135-27S

Made to Order 5-7 Day

Connectix Server Cabinets have been designed to offer the optimum housing for servers and networking hardware. Mesh front and rear doors plus a vented roof add up to offer maximum ventilation; whilst the lockable doors all round provide essential security.

All doors are fully removable with quick release hinges for easy equipment installation, and the large floor aperture gives maximum cable access.

Connectix server cabinets are available in various configurations and are supplied fully assembled. The high quality attractive black finish ensures the cabinet will complement high specification office environments.

Server Cabinet Details (move mouse over to explore):

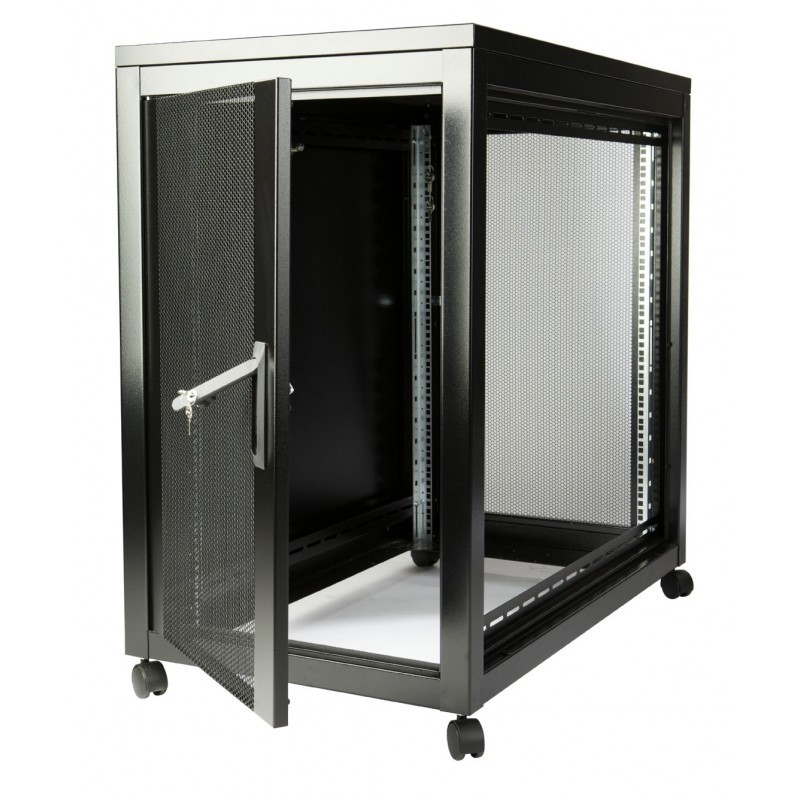

42u 600 x 1000 Cabinet shown for illustration purposes.

Features:

  • Full height adjustable 19" mounting prfofiles front and rear
  • Fully removable sides
  • Mesh doors front anr rear allows for maximum ventilation
  • Lockable doors all around provide excellent security
  • High quality paint finish
  • Supplied fully assembled



Compatible with:

Dell:
tickDell Poweredge Rackmount Servers with ReadyRails
tickDell Poweredge Rackmount Servers with RapidRails
tickDell Poweredge Tower Servers (requires either a fixed shelf or telescopic shelf)
HP
tickHP ProLiant DL Servers
tickHP ProLiant ML Servers (requires either a fixed shelf or telescopic shelf)
Fujitsu
tickFujitsu Primergy RX Rack Servers
tickFujitsu Primergy TX Tower Servers (requires either a fixed shelf or telescopic shelf)
Lenovo
tickLenovo Rack Servers
tickLenovo Tower Servers (requires either a fixed shelf or telescopic shelf)
IBM
tickIBM System X Rackmount Servers
tickIBM System X Tower Servers (requires either a fixed shelf or telescopic shelf)
Cisco
tickCisco UCS Rack Servers

If unsure or you need any advice with your rack, please call sales on 01376 333 500

Dimensions By U Height

U HeightSize (HxWxD)
12U548x800x1000 mm
18U948x800x1000 mm
27U1348x800x1000 mm
42U2015x800x1000 mm
45U2148x800x1000 mm
75U2237x800x1000 mm
Cable EntryTop & Bottom
ConstructionBolted
Depth1000mm
Width800mm
