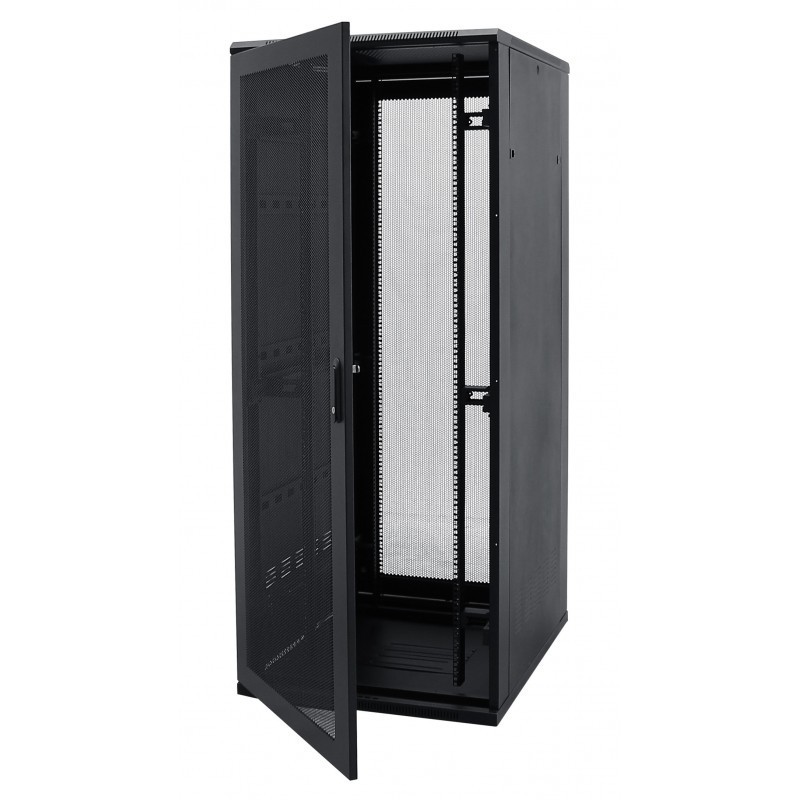

RackyRax 800mm x 1000mm Server Cabinet

RackyRax 800mm x 1000mm Server Cabinet

800mm Wide x 1000mm Deep Floor Standing Server Rack Cabinet

RR-F6-

In Stock

Connectix Racky Rax Server Cabinets have been designed to offer the optimum housing for servers and networking hardware. Mesh front and rear doors plus a vented roof add up to offer maximum ventilation. The cabinets are fitted with quick release front and rear perforated doors (approximately 60% open), fitted with lockable swing handles.

The side panels can be fitted with cabinet locks. The large floor aperture gives maximum cable access, plus there is cabling access in the top. All apertures are fitted with blanking plates as standard. These 800 wide cabinets have additional cable access next to the rack profiles to allow easy routing of cables from the front to the rear of the cabinet.

These Server Cabinets are available in various configurations and are supplied fully assembled on a pallet, but all cabinets can be easily dismantled if required. The high quality attractive black finish ensures the cabinet will complement high specification office environments.

Features & Benefits

  • Supplied fully assembled or flat pack
  • Front single mesh door & rear dual mesh doors
  • Lockable doors front and rear
  • Fully removable solid steel sides
  • Design allows for maximum ventilation
  • RU marked rails
  • Honeycomb vents on front and rear doors
  • Enhanced 130° operation angle hinge
  • Top build-in 3 x brush entry
  • Bottom build-in 2 x brush entry, 4 x cable entry
  • Adjustable 19” mounting profiles front and rear
  • High quality paint finish (Black powder coat)
  • 300-500kg static load capacity
  • IP20

Dimensions By U Height


U HeightSize (HxWxD)Weight
18U902x800x1000 mm68.2 Kg
211035x800x1000 mm71 Kg
24U1180x800x1000 mm73.8 Kg
27U1302x800x1000 mm77.6Kg
42U1968x800x1000 mm116.8Kg
45U2103x800x1000 mm118.6 Kg



A full range of accessories are available to complement the cabinet including castors, shelves and vertical cable trays

Depth1000mm
Width600mm
