600mm Deep CCS Wall Mount Data Cabinets

CCS 620mm Deep Wall Mount Data Cabinets

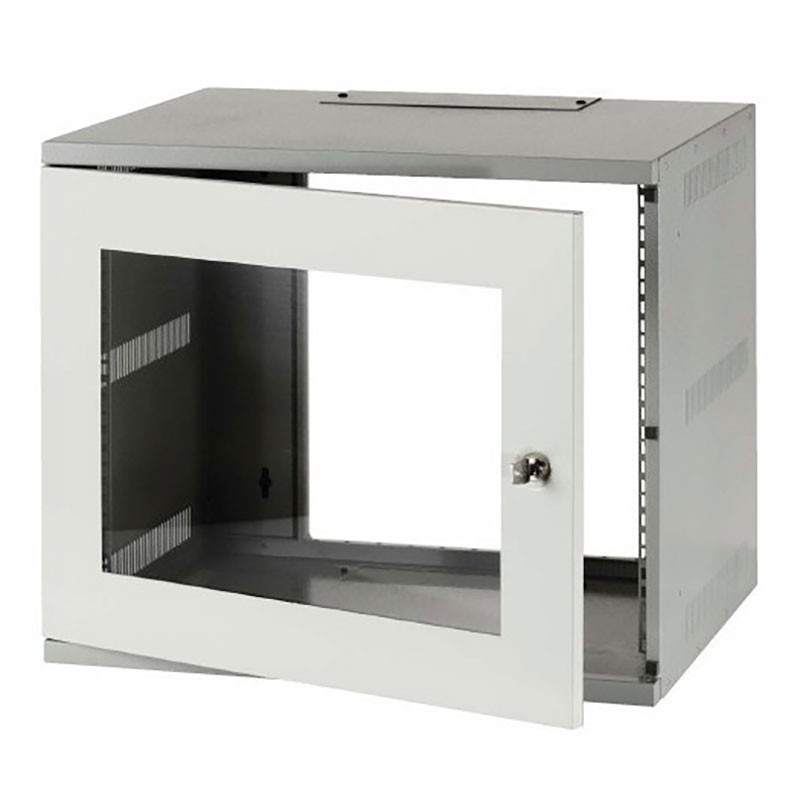

620mm Wall Cabinet in Grey with Perspex Front Door

009-000-101-06

In Stock

Available in sizes from 6U to 21U.

The Lightweight Wall Mounting Cabinets feature fixed profiles and a large cutout panel at the rear.

The cabinet is finished in goose grey with a lockable ash grey perspex inset door.

19” Wall Mounted Frames are an ideal solution when installation space is at a premium.

The steel framework provides sufficient durability for environments such as risers or shafts. The design allows maximum access to the internal equipment through the back, top & base.

Features:

  • Manufactured in the UK
  • Ideal for installation sites where space is limited such as risers and shafts
  • Standard finish goose grey (other colours on request)
  • Easy access to internal equipment
  • Inset acrylic as standard, mesh or steel optional
  • Hinged door left or right with cam lock
  • Vented sides
  • Removable top & bottom gland plate
  • Cable entry top & bottom
  • Open rear area
  • 4 x Wall mounting points

Dimensions By U Height

U HeightSize (HxWxD)
6U313x515x620 mm
9U446x515x620 mm
12U579x515x620 mm
Cable EntryTop & Bottom
ConstructionWelded
Depth620 mm
Width515mm
