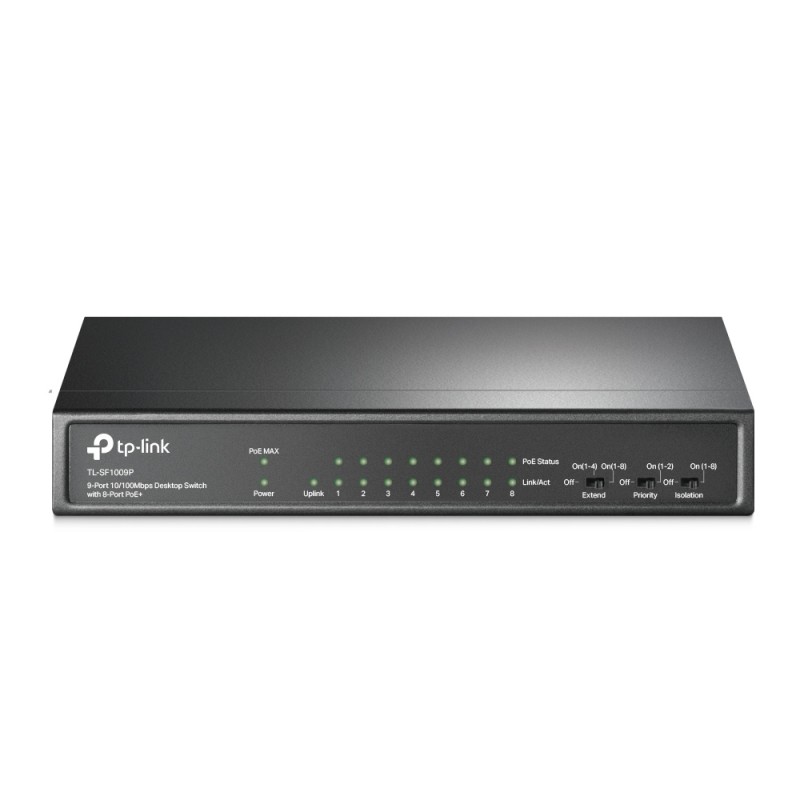

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

9x 10/100 Mbps RJ-45, PoE, 1.8 Gbps, 171x98x27 mm

TL-SF1009P

In Stock

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m



Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.



Ideal for IP Surveillance

—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.



**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.



Ideal for IP Surveillance

—Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.



Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Durable Metal Casing

The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
10G supportNo
CertificationFCC, CE, RoHS
Depth98 mm
Height27 mm
Operating temperature (T-T)0 - 40 °C
Power over Ethernet (PoE) ports quantity8
Width171 mm
Product colourBlack
FanlessY
Half duplexY

TL-SF1009P.pdf

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ Data Sheet

Download (266.99k)
