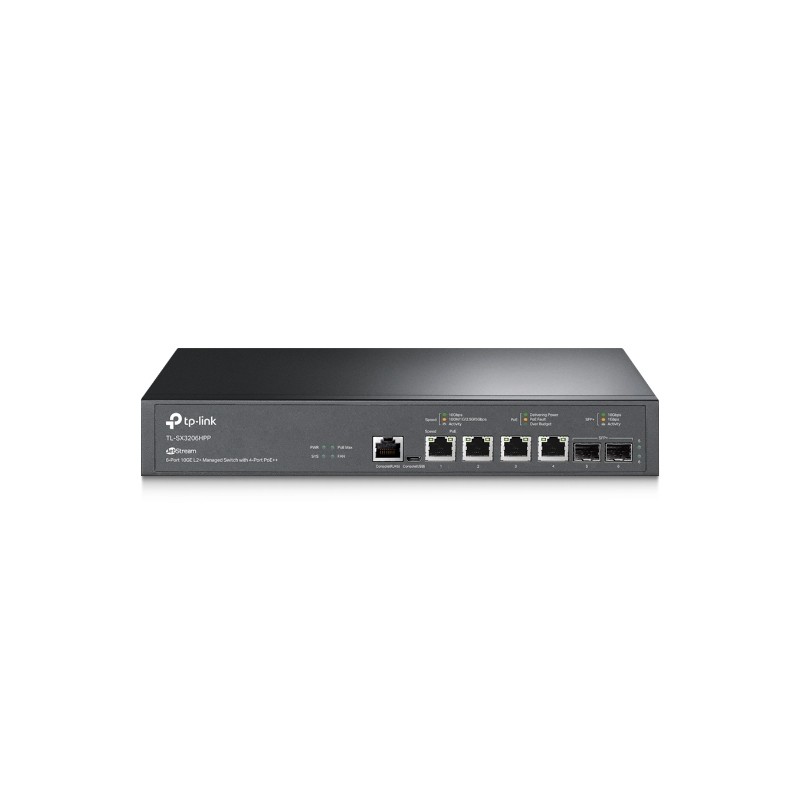

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

4x 100/1000/2500/5000/10000 Mbps, 2x 10G SFP+, 1x RJ45, 1x Micro-USB, 120 Gbps, 32 K MAC, 98 KB Jumbo, 29x180x44 mm

tl-sx3206hpp

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Lightning-Fast Connection with Full 10GE Ports Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.Seamless Integration to Omada Cloud SDN Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.
10G supportYes
CertificationCE, FCC, RoHS
Depth180 mm
Height44 mm
Operating temperature (T-T)0 - 50 °C
Width294 mm
Product colourBlack
Cloud-managedY
Harmonized System (HS) code85176990

tl-sx3206hpp.pdf

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ Data Sheet

Download (1.08M)
