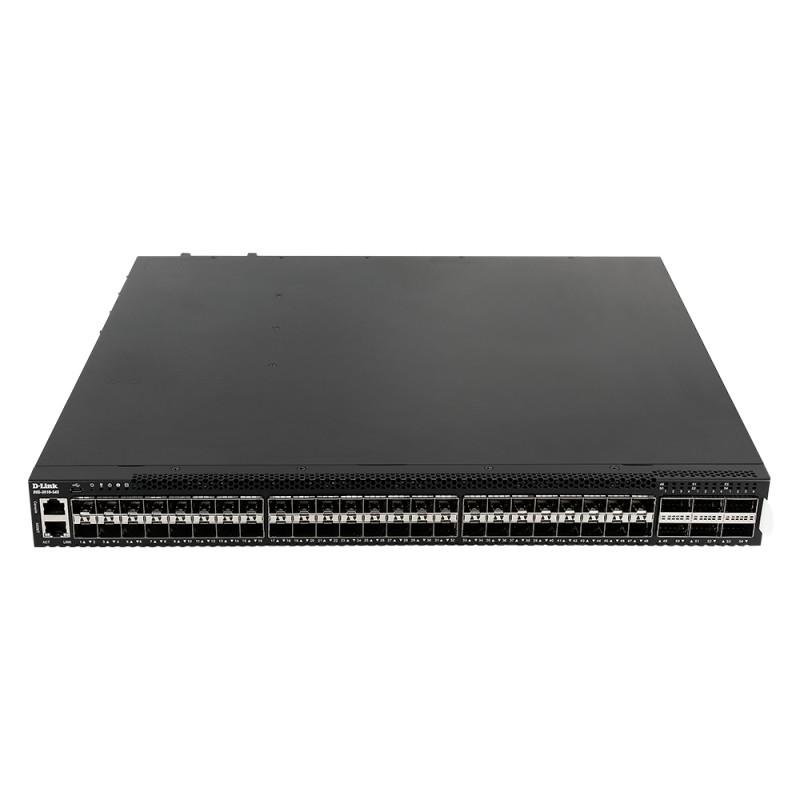

D-Link DXS-3610-54S
D-Link DXS-3610-54S D-Link DXS-3610-54S D-Link DXS-3610-54S D-Link DXS-3610-54S D-Link DXS-3610-54S

D-Link DXS-3610-54S

DXS-3610-54S - Layer 3 Stackable 10G / 100G Managed, 48-port 10G SFP+, 6-port 100G QSFP28 interfaces switch with Standard Image with 2 full load front-to-back AC PSUs and 5 front-toback fan modules

DXS-3610-54S/SI

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

OpenFlow Switching that Stacks Above the Competition The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.High Availability The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.Hot-Swappable Redundancy The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.Robust and Versatile Stacking Capability Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.Enhanced Manageability for Peace of Mind For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
10G supportYes
CertificationCB, cUL, LVD
Depth487.44 mm
Form factor1U
Height43.5 mm
Operating temperature (T-T)0 - 45 °C
Weight9800 g
Width441 mm
Product colourBlack
QSFP28 ports quantity6

dxs-3610-54ssi.pdf

D-Link DXS-3610-54S Data Sheet

Download (490.32k)
