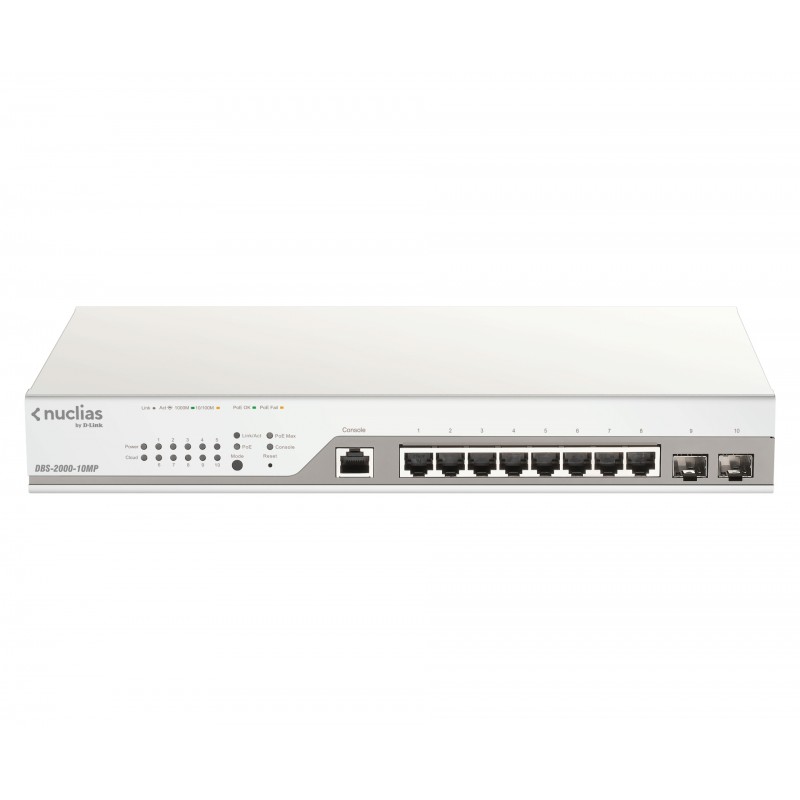

D-Link DBS-2000-10MP
D-Link DBS-2000-10MP D-Link DBS-2000-10MP D-Link DBS-2000-10MP D-Link DBS-2000-10MP

D-Link DBS-2000-10MP

DBS-2000-10MP, 20 Gbps, 14.88 Mpps, 8x 1G PoE RJ-45, 2x 1G SFP, 500MHz, 256MB DDR3, 330x180x44 mm

DBS-2000-10MP

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Cloud Networking, Refreshed

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.



Management Over the Cloud

DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.



Easy Troubleshooting

The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.



Advanced Security Features

The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.



Full PoE Support

Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
10G supportNo
Depth180 mm
Height44 mm
Operating temperature (T-T)-5 - 50 °C
Power over Ethernet (PoE) ports quantity8
Weight1770 g
Width330 mm
Product colourGrey
Shipping (inner) case net weight10158 g
Quantity per shipping (inner) case3 pc(s)
Shipping (inner) case gross weight10960 g
Pallet gross weight (air)282540 g
Number of cartons per pallet (air)24
Quantity per pallet (air)72 pc(s)
Pallet height (air)1182 mm
Pallet gross weight (sea)458400 g
Number of cartons per pallet (sea)40
Quantity per pallet (sea)120 pc(s)
Pallet height (sea)1880 mm

dbs-2000-10mp.pdf

D-Link DBS-2000-10MP Data Sheet

Download (727.63k)
