Netgear M6100-24X3
Netgear M6100-24X3 Netgear M6100-24X3 Netgear M6100-24X3

Netgear M6100-24X3

Starter Kit, 1 x 1Gb RJ45, 16 x SFP+, 24 x 10GBASE-T RJ-45

XCM8903SX-10000S

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

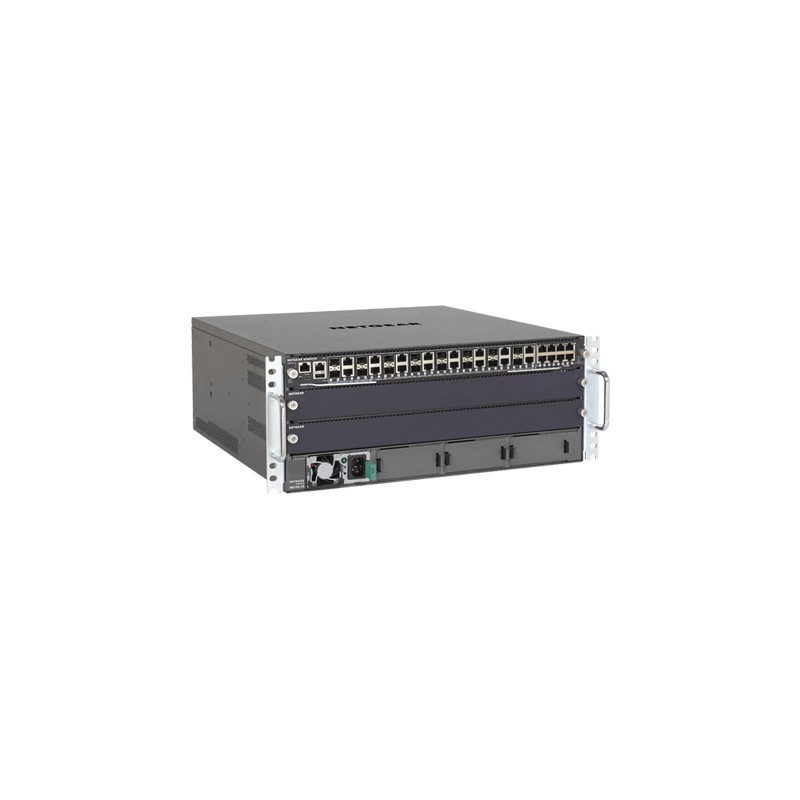

M6100-24X3 Starter Kit bundle including M6100-3S base chassis, XCM8924X blade, AFT603 fan tray, APS1000W power supply



M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.



The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.



World-class availability



- Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management

- N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)



High speed performance



- 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput

- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)



Lower complexity



- Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license

- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks



Investment protection



- Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications

- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed



Industry standard management



- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN

- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support



Industry leading warranty



- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*

- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
10G supportYes
CertificationCE\nFCC Part 15 Class A\nVCCI Class A\nClass A EN 55022\n(CISPR 22) Class A\nClass A C-Tick\nEN 50082-1\nEN 55024
Depth441.6 mm
Form factor4U
Height175.9 mm
Housing materialMetal
Operating temperature (T-T)0 - 50 °C
SafetyCE, CSA, UL 1950 /cUL IEC 950/EN 60950
Supported network protocolsIPv4/IPv6
Width432 mm
