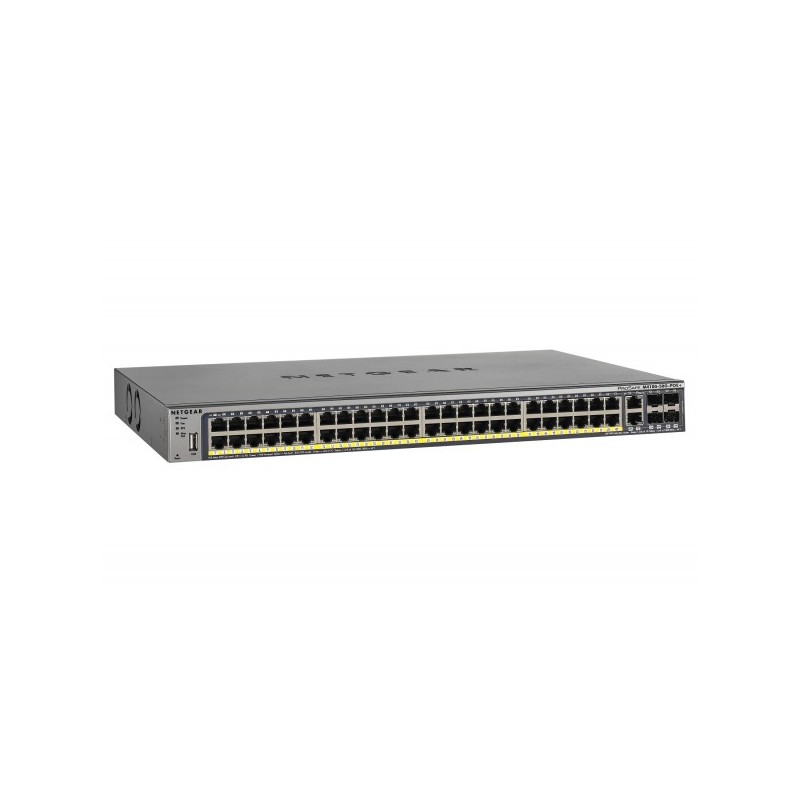

Netgear ProSafe M4100-50G-POE+

Netgear M4100-50G-POE+

M4100-50G-POE+ - 50x RJ45 10/100/1000, 1x Serial RS232 DB9/Mini-USB, 48x PoE+, 555.50W

GSM7248P-100NES

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- Fully managed switches with CLI and scripting

- From 8 ports Fast Ethernet to 50 ports Gigabit

- Static Layer 3 routing with 64 IP interfaces

- High-end PoE 802.3af and PoE+ 802.3at

- RPS and EPS options up to 1,440W budget

- Private VLANs, LLDP-MED and MVR



The NETGEAR® Intelligent Edge M4100 series consists of 12 fully managed switches, ranging from 8-port Fast Ethernet to 50-port Gigabit Ethernet.

They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.



As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.



Layer 2+ with static routing

- M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions

- L3 fixed routes to the next hop towards the destination network are added to the routing table

- L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)



Engineered for convergence

- Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol

- Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration

- Advanced classifier-based hardware for L2, L3, L4 security and prioritization

- Advanced Multicast filtering with IGMP and MLD snooping and querier modes



High-value performance and IPv6 ready

- 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet

- IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)



High availability and PoE/PoE+ full power capability

- Redundant power supply option for uninterruptible operation (RPS)

- External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W)



Industry standard management

Industry standard command line interface (CLI)

Fully functional NETGEAR web interface (GUI)



Industry leading warranty

NETGEAR M4100 series is backed by NETGEAR ProSafe Lifetime Hardware Warranty

Also included ProSupport Lifetime 24x7 Advanced Technical Support

Also included 3-Year Next Business Day Onsite Hardware Replacement
10G supportYes
Certification- CE mark, commercial - FCC Part 15 Class A, VCCI Class A - Class A EN 55022 (CISPR 22) Class A - Class A C-Tick - EN 50082-1 - EN 55024
Depth310 mm
Height43.2 mm
Operating temperature (T-T)0 - 50 °C
SafetyCE, CSA, UL, CB, CCC
Weight4960 g
Width440 mm
