EtherScope nXG
EtherScope nXG EtherScope nXG EtherScope nXG Network performance kit EtherScope nXG Essentials performance kit EtherScope nXG Advanced Performance Kit

EtherScope nXG

Portable Network Expert

00A-501-010-05

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

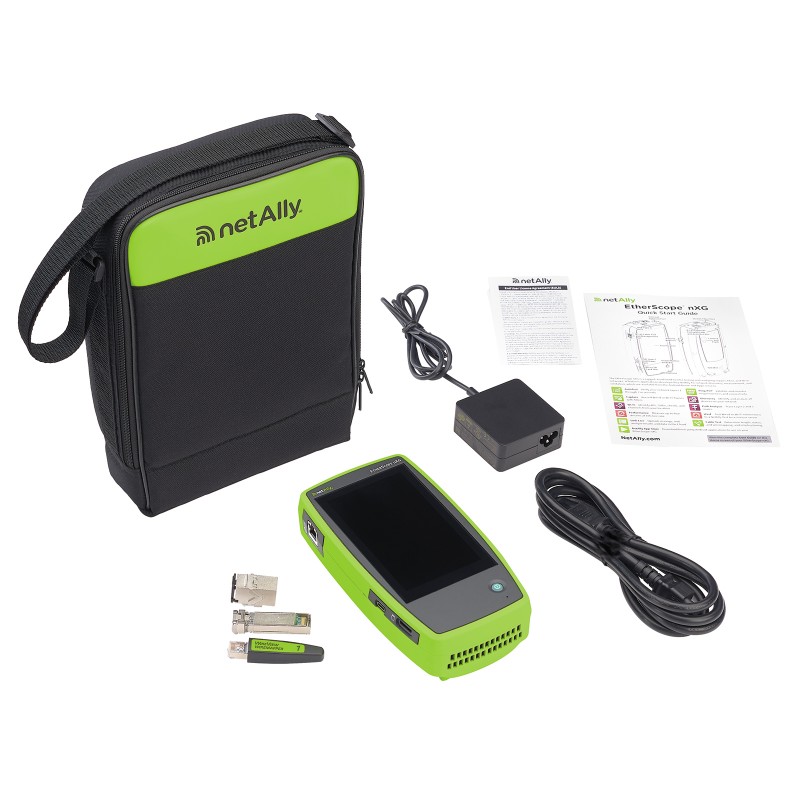

The EtherScope nXG Portable Network Expert is a multi-technology, all-in-one handheld network tester that enables engineers and technicians to get more done faster, from deployment to maintenance and documentation of their ever-changing Wi-Fi and Ethernet access networks. With its simple operation, yet in-depth visibility, and the ability to remotely access and control EtherScope nXG, engineers can now fully enable and leverage the “local hands” of field technicians to expedite problem-solving.

  • Test, verify, and troubleshoot technology upgrades, NBASE-T, 10G and Wi-Fi 5/6networks with advanced Android-based troubleshooting apps and purpose-built test hardware
  • Verify up to 10G Ethernet link performance for critical servers, uplinks and keyend devices, and validate Wi-Fi network performance
  • Empowers technicians who may not have access to network managementsystems or other engineer-level tools, to assess and document complexnetwork deployments with multiple VLANs and Wi-Fi SSIDs
  • Enables remote engineers to troubleshoot and collaborate with on-sitetechnicians to solve tough problems at remote sites, saving time and cost oftravel
  • Seamlessly consolidate and manage field test data, and integrate with networkmanagement systems via complimentary Link-Live Cloud Service
AltitudeOperating: 4,000 m; Storage: 12,000 m
Battery lifeTypical operating life is 6 hours; Typical charge time is 3 hours
Display5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels)
Host interfaceRJ-45 Cable Test and Management Port, USB Type-A Port, USB Type-C On-the-Go Port
SafetyIEC 61010-1:2010: Pollution degree 2
Weight1.677 lbs. (0.76 kg)
Dimensions4.05 in x 7.67 in x 2.16 in (10.3 cm x 19.5 cm x 5.5 cm)
EMCIEC 61326-1: Basic Electromagnetic Environment; CISPR 11: Group 1, Class A
Operating Temperature32°F to 113°F (0°C to +45°C) NOTE: The battery will not charge if the internal temperature of the tester is above 122°F (50°C).
Storage Temperature-4°F to 140°F (-20°C to +60°C)
BatteryRemovable, rechargeable lithium-ion battery pack (7.2 V, 6.4 A, 46 Wh)
Shock and VibrationMeets the requirements of MIL-PRF-28800F for Class 3 Equipment
Operating relative humidity (% RH without condensation)90% (50°F to 95°F; 10°C to 35°C)75% (95°F to 113°F; 35°C to 45°C)
MemoryApproximately 8 GB available for storing test results and user applic-ations
Cable testPair lengths, opens, shorts, splits, crossed, straight through, and WireView ID
SD Card PortSupports Micro SD card storage
ChargingUSB Type-C 45-W adapter:AC Input Power 100-240 V, 50-60 Hz; DC Output Power 15 V (3 A)RJ-45: 802.3at and 802.3bt PoE
Media AccessCopper: 10M/100M/1G/2.5G/5G/10G Fiber SFP Adapters: 1G/10GBASE-X
Supported IEEE StandardsWired: 802.3/ab/ae/an/bz/i/u/z Wi-Fi: 802.11a/b/g/n/acPoE: 802.3af/at/bt, Class 0-8 and UPOE
EtherScope nXG has two internal Wi-Fi RadiosWi-Fi Testing – 4x4 Dual-band 802.11ac Wave 2 wireless radio, Android System Wi-Fi, Bluetooth, and Management – 1x1 Dual-band 802.11ac Wave 2 + Bluetooth 5.0 and BLE wireless radio (Both are IEEE 802.11a/b/g/n/ac compliant.)
