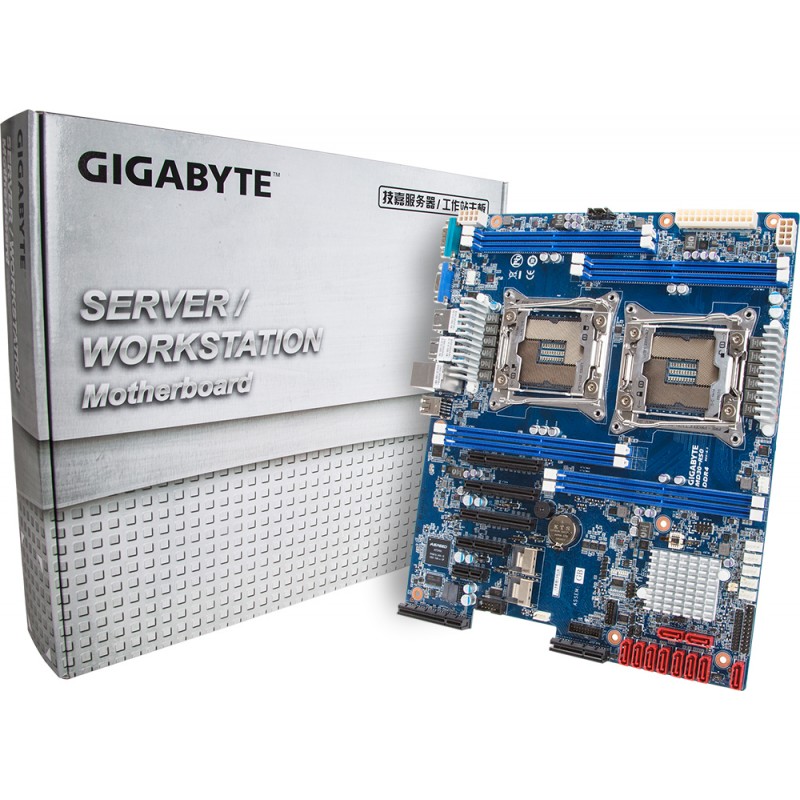

HomeGigabyte MD30-RS0 (rev. 1.0)
Gigabyte MD30-RS0 (rev. 1.0)
Gigabyte MD30-RS0 (rev. 1.0) Gigabyte MD30-RS0 (rev. 1.0) Gigabyte MD30-RS0 (rev. 1.0) Gigabyte MD30-RS0 (rev. 1.0) Gigabyte MD30-RS0 (rev. 1.0) Gigabyte MD30-RS0 (rev. 1.0)

Gigabyte MD30-RS0 (rev. 1.0)

ATX, 2 x LGA 2011-3, Intel C612, 8 x DIMM slots, 2 x GbE LAN ports, Aspeed AST2400

MD30-RS0

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

INTEL XEON E5-I 600/2600 V

PROCESSOR FAMILIES

Based on the Haswell microarchitecture, these new Intel processor families

bring a whoe new set of performance boosting features. In addition to the

usual boost in frequencies and core numbers, the Intel xeon E5-16o0!2600

V3 families are the first in the industry to support the brand new DDR4

memory technology.

Moreover, these new processors include encryption performance overhead

reduction features, and technologies improving nn time and migration vM

integrity.



DDR4 SUPPORT

NEXT IEEN MEMORY

The Intel Xeon E5-1 600/2600 V3 families are the first generation of processors to

support exclusively the new DDR4 technology on the market, which brings:

+ 50% Bandwitdh Performance

- 35% Power Consumption @ 2DPC

- 50% Power consumption @ 3DPc



MEMORY FREQUENCY

ET THE PERFORMAnCE EDGE

On the previous server platforms from lntel, the maximum supported memory frequency has always been automatically downgraded by design when

more DIMMs were being added on a server motherboard. As this trade-off between performance and capacity represents a dilemma to many memor

ry-hungry server applications, GIGABYTE offers a unique solution Aul our mothetboards based on the LGA 2011-3 socket support by default a maxm

mum frequency of 2133 MHZ ifl any memory configuration



ADD—ON SAS CARD

STORAGE FLEXIBILITY

In addition to its ten SATA III 6Gb/s ports, the MD30-RSO has eight SAS

6Gb/s ports that can be activated with the addition of our proprietary

CRA22O-8 add-on RAID card





EASY BIOS UPDATE

Because updating the version of a BIOS can be a troublesome experience, GiGABYTE has developed this integrated function (no utility to install)

that lets you update the BIOs of your motherboard(s):

- without having to install CPUs, memory, drives, operating system, etc.

- without having to power on the system (but a power supply must be connected)

- One board at a time via our IPMl 2.0 web interface

- Multiple boards simultaneously via command line



IPMI 2.0 WEB INTERFACE

REMOTE BOARD MANAIeEMENT?

This motherboard has an onboard controller providing comprehensive remote

board monitoring and management features, such as:

- Remote Boot & Reset

- Remote Image Mounting

- Full Control Over Network, Users, Services, Etc.

- complete System Monitoring & Diagnostics



ALL IR POWER DESIGN?

Our boards CPU and memory power delivery is ensured by industry-leading

IR Digital PwM and IR PowlRstage IC controllers These components guara

aneee a super stable operating environment and allow the processors and the

memory to deliver their maximum performance.



OS—CON CAPACITORS

With a service life of a minimum of 5o’000 hours, our boards are built with

ultra long lasting components for the hgghest reliability possible.



HiGH END FERRITE CORE CHOKEC

The top quality choices we install on our boards also contflbute to an ultra

stable power delivery to the cPu and the memory.
Depth254 mm
Ethernet LANY
Ethernet LAN (RJ-45) ports3
Operating temperature (T-T)10 - 35 °C
Wi-FiN
Width305 mm
