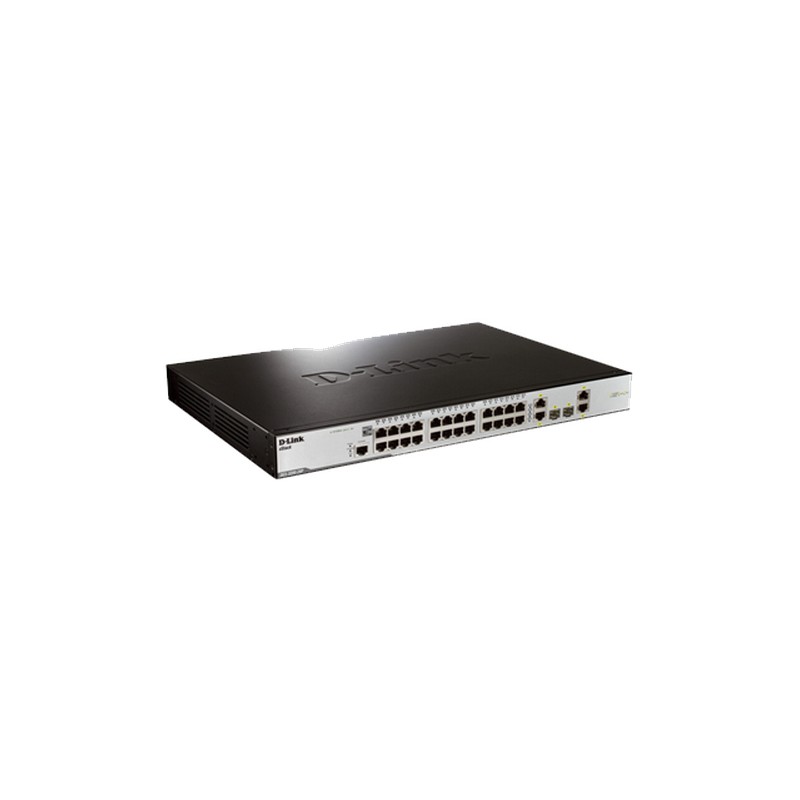

D-Link DES-3200-28
D-Link DES-3200-28 D-Link DES-3200-28 D-Link DES-3200-28

D-Link DES-3200-28

24-port 10/100Mbps PoE + 2 Combo 1000BASE-T/SFP + 2 SFP Ports L2 Managed

DES-3200-28P

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The DES-3200 Series is a member of D-Link’s Layer 2 xStack Managed Switch family designed for the

Metro ETTX, FTTX, and Enterprise market. The DES-3200 Series provides 8/16/24 10/100 Mbps Fast

Ethernet connections plus 2/4 combo Gigabit/SFP ports. The DES-3200-10/18 comes in a 9-inch desktop

size and incorporates a fanless design suitable for ETTH deployment. The DES-3200-28/28F and

DES-3200-28/ME provide copper or fiber connections on Fast Ethernet, an advantage when used for Metro Ethernet applications. It also offers the beneficial design of 2/4 Gigabit/SFP Combo ports which provide up to 4 Gbps uplink bandwidth or dual Ethernet ring topology support. The DES-3200-28F facilitates up to 20 km connectivity for Metro Ethernet applications.



Security & Availability

The DES-3200 series supports 802.1X Port-based/Host-based Access Control, Guest VLAN, and

RADIUS and TACAS+ Authentication for strict access control over the network. The IP-MAC-Port Binding

feature allows administrators to bind a source IP address with an associated MAC for a defined port

number to enhance user access control. Furthermore with the DHCP Snooping feature, the switch

automatically understands the IP/MAC pairs by snooping DHCP packets and saving them to the IMPB

white list. These features play a significant role in keeping the network secure and auditable. The builtin D-Link Safeguard Engine identifies and prioritizes “CPU interested” packets to prevent malicious traffic

from interrupting normal network flows and protects switch operation. In addition, the Access Control List (ACL) feature enhances the network security and switch performance.



Resilience/Performance Enhancement

For mission critical environments the DES-3200 series supports 802.1D-2004 edition, 802.1w and

802.1s Spanning Tree Protocols (STP). STP allows you to configure the switch with a redundant backup

bridge path, so transmission and reception of packets can be guaranteed in the event of any failed switch on the network. The switches also support 802.1AX and 802.3ad Link Aggregation, enabling you to group multiple ports in parallel to form a single port, increasing bandwidth and redundancy for higher

availability. For Quality of Service (QoS), the switches support 802.1p. This standard is a mechanism that allows real-time traffic classification into 8 priority levels mapped to 4 queues. Packet classification is based on TOS, DSCP, MAC Addresses, IP Addresses, VLAN ID, TCP/UDP port number, protocol type and user defined packet content, which enables flexible configuration especially for real-time streaming

multimedia applications such as voice over IP.



Traffic & Bandwidth Control

The bandwidth control feature allows network administrators to define the throughput levels for

each port in order to manage bandwidth. It also provides fine granularity to define the ingress/

egress traffic limits down to 62.5 kbps segments. The switches also support the Broadcast Storm

Control feature which minimizes the chance of a virus attack within the network. Port Mirroring helps

administrators facilitate traffic diagnostics or track switch performance and make changes if necessary.

Q-in-Q, also known as VLAN stacking, is a powerful yet simple and cost-effective solution which can

be used to provide multiple virtual connections and access to multiple services available over the

Metro Ethernet.



Multicast Applications

The DES-3200 series provides IGMP Snooping to prune multicast traffic and to optimize network

performance. The MLD snooping feature minimizes multicast IPv6 packets at the port level to conserve

network bandwidth.



Management Capabilities

The DES-3200 series supports standard management protocols such as SNMP, RMON, Telnet, SSH/SSL

security authentication and DHCP Relay Option 82. A web-based GUI is also supported for user-friendly

interface and easy management. DHCP AutoConfiguration is an enhanced management feature that allows administrators to pre-set configuration and save them to a TFTP server. Individual switches

can then get IP addresses from the server for booting up and loading the pre-set configuration. The Link

Layer Discovery Protocol (LLDP) allows a network device to advertise its identity and capabilities on

the local network, which helps businesses better manage their network topology. Each port on the

switch supports the Cable Diagnostics feature that helps to detect cable-related information such as

cable length status or cable functionality. D-Link Single IP Management (SIM) simplifies and speeds

up management tasks, allowing multiple switches to be configured, monitored and maintained from

any workstation running a web browser through one unique IP address. The DES-3200 Series also

works with D-Link’s D-View 6.0 software. D-View 6.0 is a Network Management System that allows

for the central management of critical network characteristics such as availability, reliability,

resilience, and security. D-View 6.0 provides a useful set of tools for network administrators who want

to effectively manage device configurations, fault tolerance, performance, and security.
CertificationMEF 21, IPv6
Connectivity technologyWired
Depth207 mm
Ethernet LANYes
Form factor1U
Height44 mm
Operating temperature (T-T)0 - 40 °C
SafetyCE LVD, UL/cUL, CB
Wi-FiNo
Width441 mm
