D-Link EasySmart

D-Link EasySmart

EasySmart, 12 x 10/100/1000 Mbps, 12 x 10/100/1000 Mbps, PoE

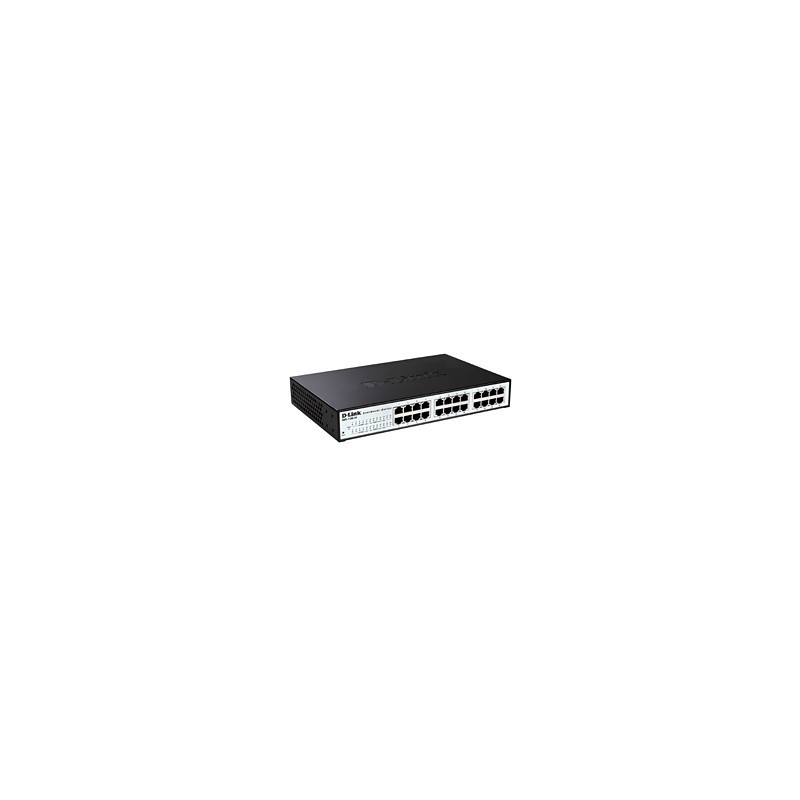

DGS-1100-24P

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

D-Link’s DGS-1100 Series is the newest addition to EasySmart Switches featuring D-Link Green

Technology. The DGS-1100 Series consists of 16 and 24 10/100/1000 Mbps port models and comes

in a compact 11” desktop/rackmount enclosure. Compliant with IEEE802.3az Energy Efficient Ethernet,

this switch consumes less power during idle periods. These switches also implement D-Link Green features that detect link status and cable length and adjust power usage accordingly. Switch management can be performed through a web management interface or through the SmartConsole Utility. The DGS-1100 Series also supports Layer 2 features such as IGMP snooping to optimize performance for multicast applications. A fanless design allows for quieter operation and and provides a longer product life.



The DGS-1100 Series provides an affordable solution for Small and Medium Business, and for communities without IT staff. They are also suitable for enterprise deployment, such as in branch offices and meeting rooms that require simple network management.



Surveillance VLAN and Bandwidth Control

The DGS-1100 Series supports Surveillance VLAN, which is best suited for video surveillance deployment. Surveillance VLAN is a new, industry-leading technology that consolidates data and

surveillance video transmission through a single DGS-1100 switch, thus sparing businesses the

expense of dedicated hardware and facilities. Surveillance VLAN also ensures the quality of

real-time video for monitoring and control without compromising the transmission of conventional

network data.In addition, with Bandwidth Control, network administrators can reserve bandwidth for

important functions that require more bandwidth or might have high priority.



Easy to deploy

The DGS-1100 EasySmart Switches support an intuitive SmartConsole utility and a web-based

management interface that enables administrators to remotely control their network down to the port level. The SmartConsole allows customers to discover multiple D-Link Smart and Easy Smart Switches

within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.



PoE Support

The DGS-1100-24P delivers Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices.
Certification-FCC Class A -CE Class A -VCCI Class A
Depth180 mm
Height44 mm
Operating temperature (T-T)0 - 40 °C
Power over Ethernet (PoE) ports quantity12
SafetyUL/cUL, CE LVD
Width280 mm
