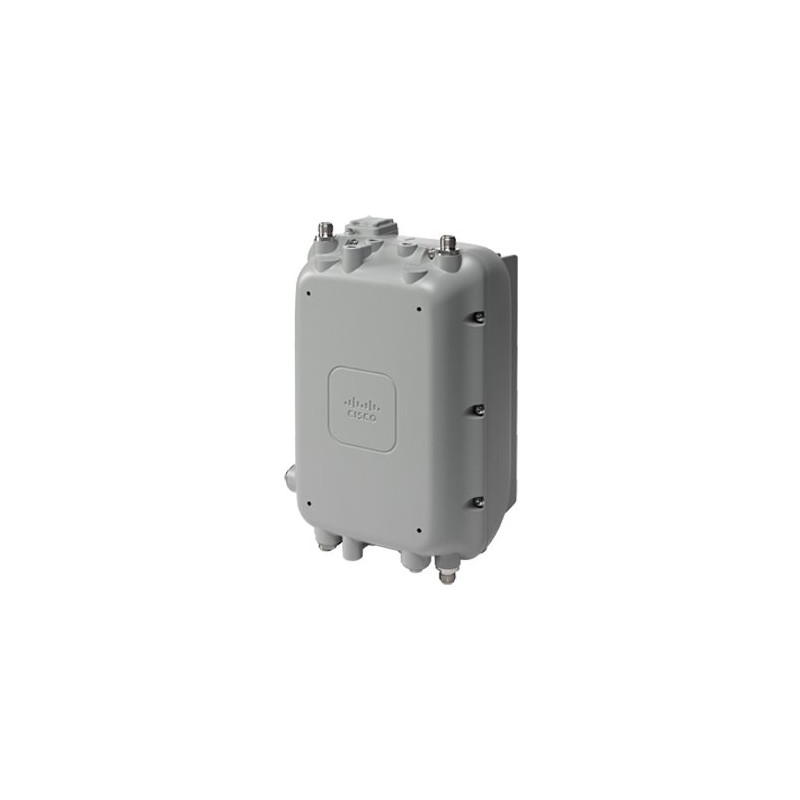

Cisco Aironet 1572EAC
Cisco Aironet 1572EAC Cisco Aironet 1572EAC

Cisco Aironet 1572EAC

Outdoor AP, External Antennas, AC Power Model, M Regulatory Domain

AIR-AP1572EAC-M-K9

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Cisco Aironet 1570 Series outdoor access point is ideal for both enterprise and carrier-class network operators looking to extend Wi-Fi coverage outdoors. It’s the industry’s highest-performing outdoor AP and supports the latest Wi-Fi standard, 802.11ac, with data connection speeds up to 1.3 Gbps. This industrial-grade AP supports 4x4 Multiple-Input and Multiple-Output (MIMO) smart antenna technology and three spatial streams for optimum performance.



The Aironet 1570 provides higher throughput over a larger area with more pervasive coverage. The AP is also well suited to high-density environments w here many users in close proximity generate RF interference that needs to be managed. Examples of environments that can benefit from the Aironet 1570 Series:

- Outdoor enterprise campuses

- Outdoor university and school campuses

- Public venues: stadiums, train stations, airports

- Service provider networks: Wi-Fi offload for mobile, fixed-line, and cable operators

- Mining operations

- Manufacturing yards

- Municipalities

- Large metropolitan areas
CertificationUL/cUL 60950, IEC 60950, EN 60950, ARIB-STD 66, ARIB-STD T71, ANSI/IEEE C62.41, EN61000-4-5 Level 4 AC Surge Immunity, EN61000-4-4 Level 4 Electrical Fast Transient, EN61000-4-3 Level 4 EMC Field Immunity, EN61000-4-2 Level 4 ESD Immunity, EN60950 Overvol
Depth201 mm
Ethernet LAN (RJ-45) ports1
Height160 mm
International Protection (IP) codeIP67
Operating temperature (T-T)-40 - 65 °C
Weight6100 g
Width300 mm
Product colourGrey
Antenna featuresDetachable antenna

air-ap1572eac-m-k9.pdf

Cisco Aironet 1572EAC Data Sheet

Download (863.24k)
