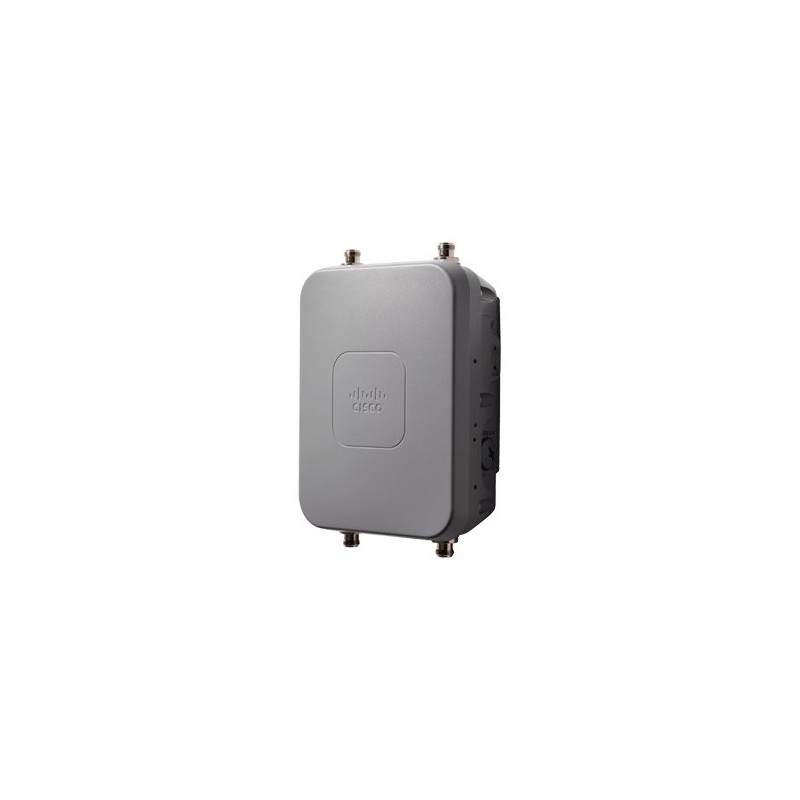

Cisco Aironet 1562E
Cisco Aironet 1562E Cisco Aironet 1562E

Cisco Aironet 1562E

Dual-band 802.11a/g/n/ac, Wave 2, external antennas, T Regulatory Domain

AIR-AP1562E-T-K9

Stock Due 10-10-2023

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Cisco Aironet® 1560 Series Outdoor Access Points offer the latest 802.11ac Wave 2 functions in a rugged, low-profile housing that service providers and enterprises can deploy easily.



Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package. The 1560 Series offers flexible deployment options for service providers and enterprise networks, that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, the 1560 Series Access Points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Aironet 1560 Series is built on the strong base of Cisco® wireless innovations such as:

- Cisco CleanAir® technology for spectrum intelligence

- Cisco ClientLink technology for beamforming

- Radio Resource Management (RRM) for dynamic transmitter channel and power control



Whether deployed as a traditional access point or wireless mesh access point, the Cisco Aironet 1560 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
CertificationUL60950, 2 nd Edition, CAN/CSA-C22.2 No. 60950, 2 nd Edition, IEC 60950, 2 nd Edition, EN 60950, 2 nd Edition, ANSI/IEEE C62.41, EN61000-4-5 Lev el 4 AC Surge Immunity, EN61000-4-4 Lev el 4 Electrical Fast Transient Burst Immunity, EN61000-4-3 Lev el 4 EM
Depth171 mm
Ethernet LAN (RJ-45) ports1
Height98 mm
International Protection (IP) codeIP67
Operating temperature (T-T)-40 - 65 °C
Weight2500 g
Width229 mm
Product colourGrey
Antenna featuresDetachable antenna

air-ap1562e-t-k9.pdf

Cisco Aironet 1562E Data Sheet
