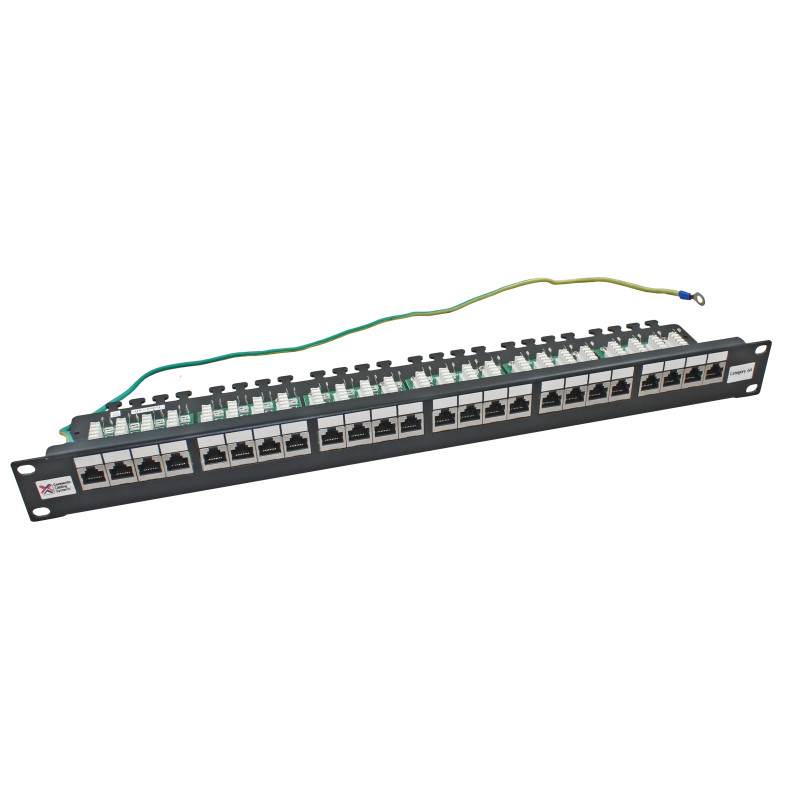

24 Port Cat 6a FTP Shielded 20/20 Right Angled Patch Panel

Connectix Cat 6a Patch Panels provide exceptional performance for high speed LAN’s including 10-Gigabit Ethernet applications. The boards are designed using the latest noise compensation techniques and the shielding feature can minimise the risk of EMI.

The 2020 Series FTP Panel offers Cat 6a performance and has been designed to present the cable termination IDCs horizontally on a tray at the rear of the panel, making termination and cable management easier.

All sockets in the panel are commonly linked through the panel and can be grounded to the rack using the earth wire provided. When combined with Connectix Cat 6a FTP Modules and Cable, the link will perform well in excess of Category 6a specifications.

Cat 6a Patch Panel Details:

Features:

• Easy to install
• Suitable for 10-Gigabit Ethernet applications
• High Density 24 ports
• Rear cable management
• Earth connection
• Robust all steel construction

Specification:

• Width - 483mm (19’’)
• Depth - 98mm
• Height - 1u (44.5mm)
• Material - Mild steel
• Finish - Matt black polyester paint
• Socket - High performance side entry RJ45 jacks
• Socket Labels - Write-on silk screen on panel front
• IDC Labelling - Colour coded to T568B
• Conforms to - TIA-568-C Category 6a Specification
