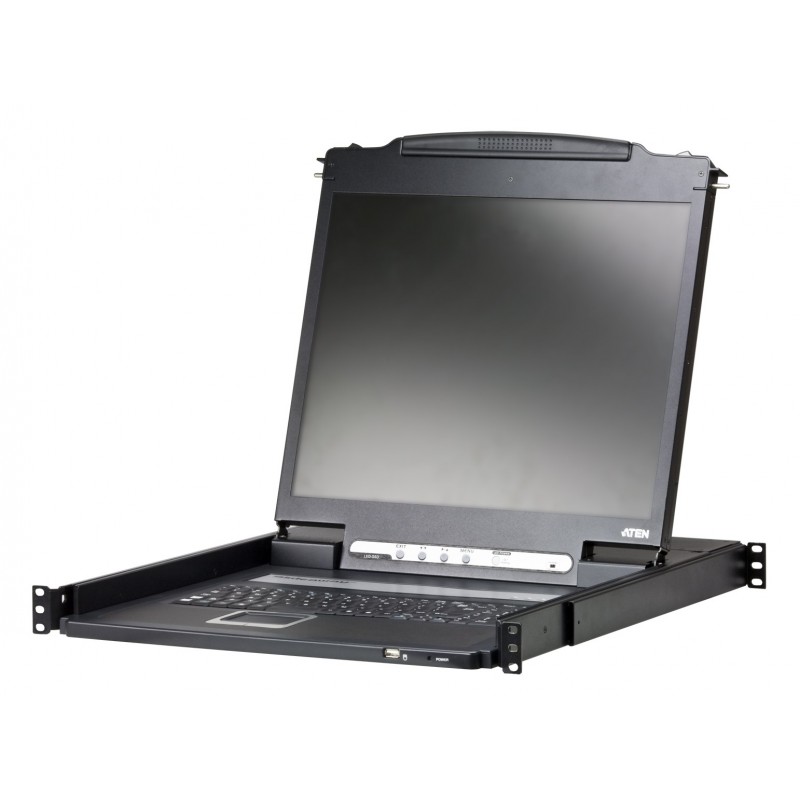

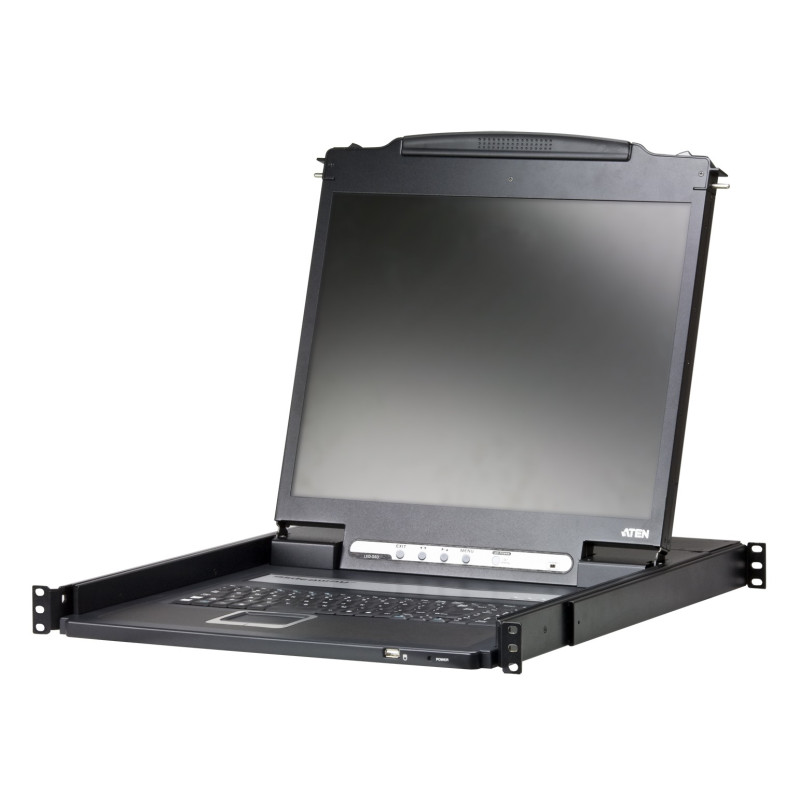

Aten CL3000N
Aten CL3000N Aten CL3000N

Aten CL3000N

48.26 cm (19 ") LCD Console (USB - PS/2) (LED)

CL3000N

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Features



- Integrated KVM console featuring a19” LCD monitor

- Green power LED-backlit LCD monitor saves energy

- Lightweight design for easier installation

- Advanced Random Vibration Resistance Testing - MIL-STD-810G Certified

- Dual Interface – supports computers with PS/2 or USB keyboards and mice

- Additional hot-pluggable USB mouse port on the front panel (also functions as a USB peripheral port)

- Multiplatform support – Windows, Linux, Mac, and Sun

- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B

- Firmware upgradable

- Extra console port – manage computers from an external console (monitor, USB or PS/2 keyboard and mouse)

- Console lock – the console remains securely locked away when not in use

- Slideaway™ housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space

- DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor

- Adjustable depth to fit within a rack

- Standard 105-key keyboard



Package Contents



- 1x CL3000 Lightweight PS/2-USB LCD Console with Standard Rack Mounting Kit

- 1x 2L-5302UP PS/2-USB KVM Cable

- 1x 1ADP-0005-005G Power Cord

- 1x User Instructions
CertificationRoHS, WEEE
Depth585.1 mm
DisplayLCD
Height44 mm
MaterialMetal
Maximum resolution1280 x 1024 pixels
Operating temperature (T-T)0 - 40 °C
Weight8410 g
Width485 mm
