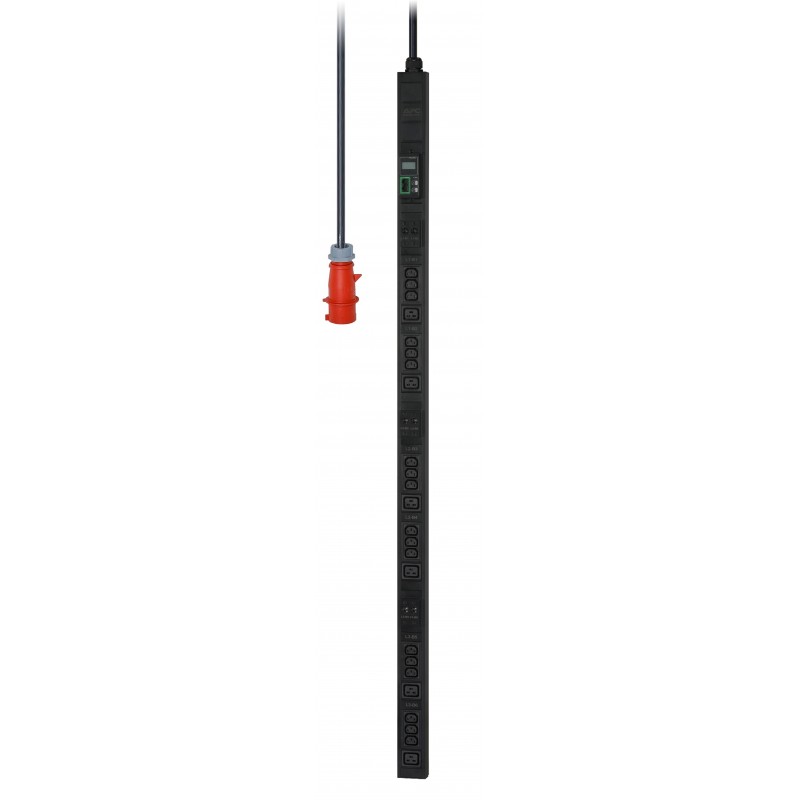

APC EPDU1232M
APC EPDU1232M APC EPDU1232M APC EPDU1232M APC EPDU1232M APC EPDU1232M APC EPDU1232M APC EPDU1232M APC EPDU1232M APC EPDU1232M

APC EPDU1232M

230V, (18) IEC 320 C13, (6) IEC 320 C19, 400V 3PH, 50/60 Hz

EPDU1232M

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Easy Metered Rack Power Distribution Units (PDU) provide real-time remote monitoring and power management of connected loads in server rack and network rack solutions. Going beyond the average power strip, Easy PDU offers User-defined alarms to warn of potential circuit overloads before critical IT failures occur.Easy Metered Rack Power Distribution Units (PDU) provide real-time remote monitoring and power management of connected loads in server rack and network rack solutions. Going beyond the average power strip, Easy PDU offers User-defined alarms to warn of potential circuit overloads before critical IT failures occur.Remote Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.Toolless Rack Mounting Capabilities Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.Zero U Rack Mounting Abilities Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.
CertificationCE, EAC, RCM, TÜV
Depth44 mm
DisplayLCD
Height1506 mm
Housing materialAluminium
Operating temperature (T-T)-5 - 45 °C
Weight4640 g
Width62 mm
Product colourBlack
Sustainability certificatesRoHS

epdu1232m.pdf

APC EPDU1232M Data Sheet

Download (72.32k)
