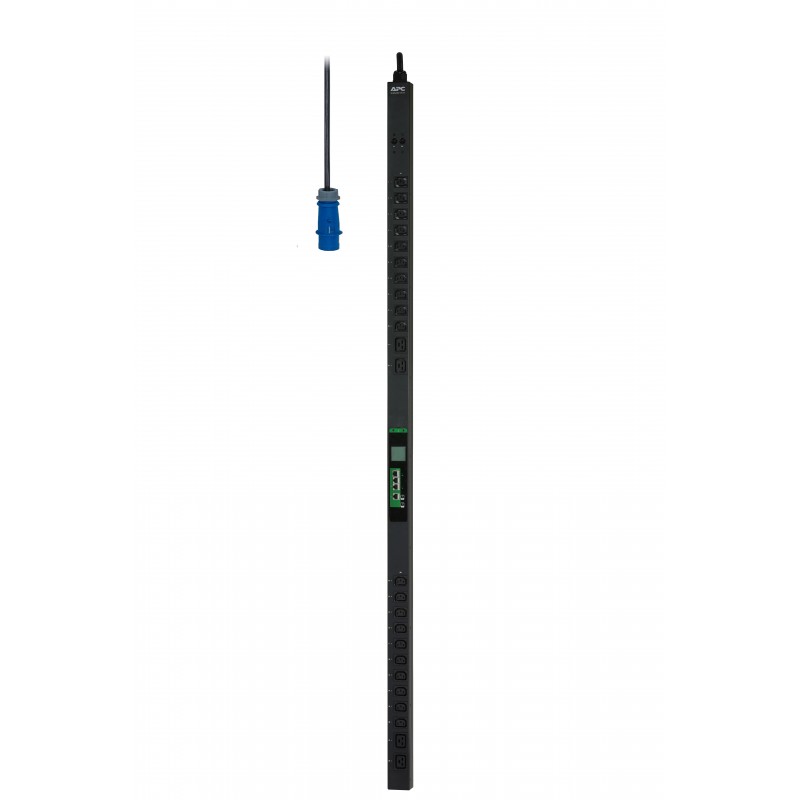

APC EPDU1132S
APC EPDU1132S APC EPDU1132S APC EPDU1132S APC EPDU1132S APC EPDU1132S APC EPDU1132S APC EPDU1132S

APC EPDU1132S

Easy PDU, Switched, Zero U, 32A, 230V, (20)C13 & (4)C19;IEC309

EPDU1132S

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Easy Switched Rack Power Distribution Units (PDU) go beyond the average power strip and provide advanced power management and load monitoring of server rack and network rack solutions. Including remote on/off switching control of individual outlets for power cycling.Remote Individual Outlet Control Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).Remote Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.Vertical Mounting Capabilities Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.Zero U Rack Mounting Abilities Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.Network Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.Remote Individual Outlet Control Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.Power Delays Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.Local Current Monitoring Display The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.Network port sharing Allows four rack PDUs to be connected using In and Out ports so that only one network connection is necessary.
CertificationCE, EAC, TUV, REACH
Depth62 mm
DisplayLCD
Height1738 mm
Housing materialAluminium
Weight7900 g
Width55 mm
Product colourBlack
Sustainability certificatesRoHS

epdu1132s.pdf

APC EPDU1132S Data Sheet

Download (3.66M)
