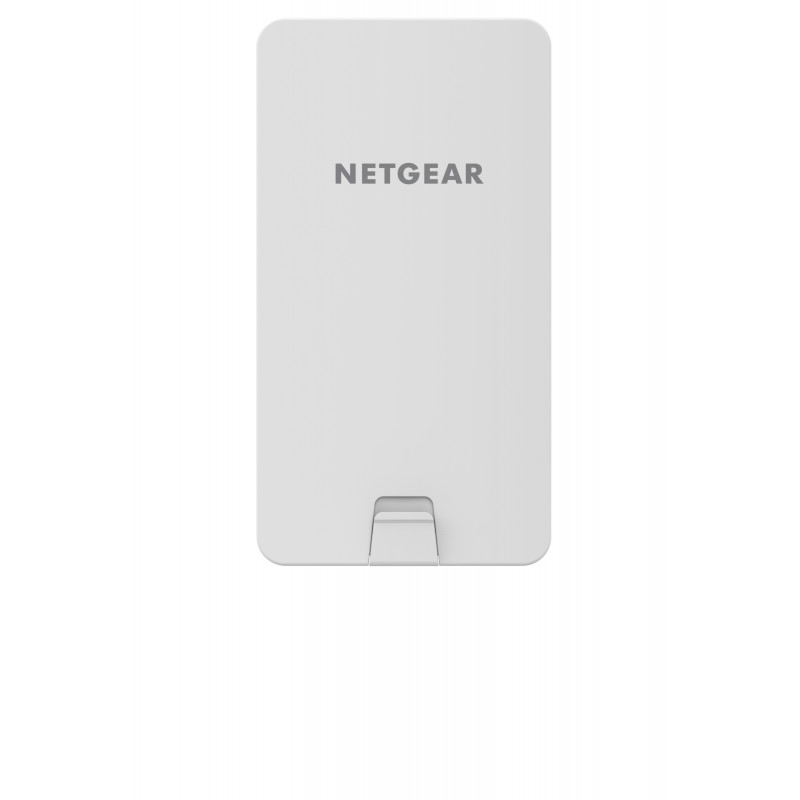

Netgear WBC502
Netgear WBC502 Netgear WBC502 Netgear WBC502 Netgear WBC502 Netgear WBC502 Netgear WBC502 Netgear WBC502

Netgear WBC502

WBC502, IP55, 23dBm, 8.93W, 10/100/1000 BASE-T RJ-45

WBC502-100PES

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The NETGEAR Insight Instant Wireless AirBridge provides long distance Outdoor WiFi coverage up to 6000ft (2000m). Local or remote management enables ease of installation and maintenance. It delivers 500Mbps at 500ft (166m) distance at line-of-sight and supports the latest 5GHz 802.11ac WiFi technology. NETGEAR AirBridge is ideal for outdoor WiFi expansion in country clubs or golf courses, external lodges, farms, pool houses and outdoor IP cameras installation for home or business security.



NETGEAR Insight Instant Wireless AirBridge Outdoor Long Distance WiFi with remote management



NETGEAR Insight Instant Wireless AirBridge for long distance Outdoor WiFi coverage up to 9000ft (3000m). Local or remote management for ease of installation and maintenance. NETGEAR AirBridge delivers 500Mbps at 500ft (166m) distance at line-of-sight and supports the latest 5GHz 802.11ac WiFi technology. NETGEAR AirBridge is ideal for outdoor WiFi expansion in country clubs or golf courses, external lodges, farms, poolhouses and outdoor IP cameras installation for home or business security
CertificationFCC/ ISED, Subpart 15 B, Subpart E 15.407, Subpart C/J RSS-102/247\nCE, EN 301 893, EN 301 489-1/-17, EN 50385, EN 55032, EN 55024/EN 55034, EN 60950-1/-22, IEC 60529, EN 62368-1, EC 1275
Depth186 mm
Ethernet LAN (RJ-45) ports2
Height29 mm
International Protection (IP) codeIP55
Operating temperature (T-T)-20 - 60 °C
Weight504 g
Width100 mm
Service Set Identifier (SSID) featuresSSID broadcast on/off
Maximum data transfer rate (2.4 GHz)11 Mbit/s
Maximum data transfer rate (5 GHz)54 Mbit/s
Fit AP mode features802.11k & 802.11v smart roaming,Wireless distribution system (WDS)
Master (outer) case width273 mm
Master (outer) case length535 mm
Master (outer) case height257 mm
Master (outer) case weight8140 g
Quantity per master (outer) case10 pc(s)
WLAN channel featuresWLAN channel management
Remote Authentication Dial-In User Service (RADIUS)Y
Antenna featuresIntegrated antenna

wbc502-100pes.pdf

Netgear WBC502 Data Sheet

Download (1.28M)
