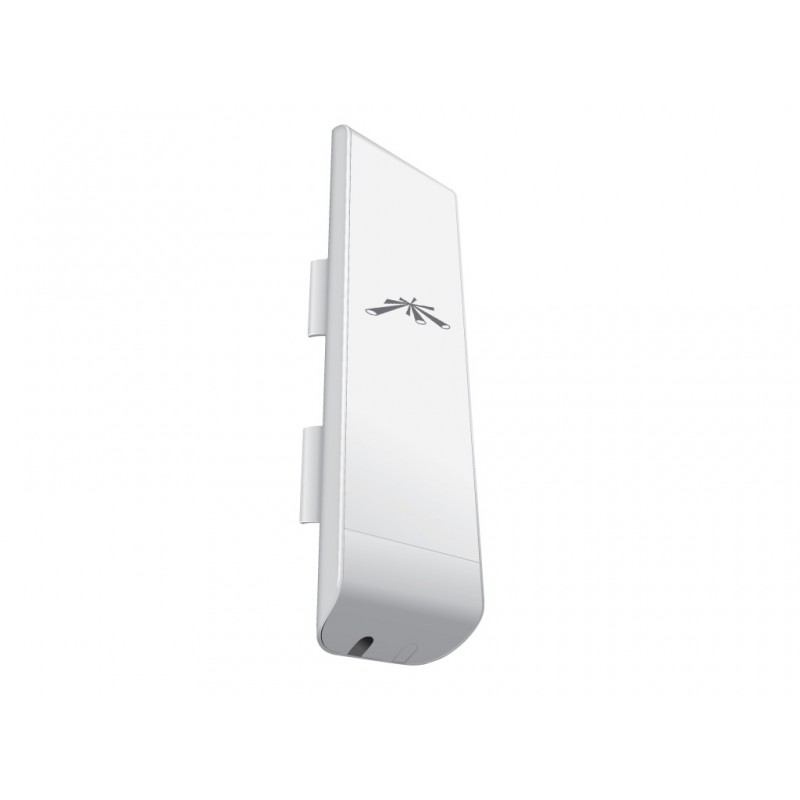

Ubiquiti Networks NSM2
Ubiquiti Networks NSM2 Ubiquiti Networks NSM2 Ubiquiti Networks NSM2 Ubiquiti Networks NSM2 Ubiquiti Networks NSM2 Ubiquiti Networks NSM2

Ubiquiti Networks NSM2

2.4GHz, 150+ Mb/s, Fast Ethernet, 13+ km

NSM2

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Indoor/Outdoor airMAX CPE

Ubiquiti Nanostation M2, 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.



The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.



Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter.



Remote reset is an additional option. Nanostation M comes standard as 24V without remote reset.



Featuring a panel antenna and dual-polarity performance, the NanoStation M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.



Compact CPE Design

The NanoStation M features the CPE design that expanded the global Wireless ISP industry.



Plug and Play Installation

The NanoStationM requires no tools for assembly; only a single wrench is required for pole-mounting.



Versatile Application Use

The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.



Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.



Powerful airOS Features

Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.



Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.



Window/Wall Mounting Kit

Use the NanoStation Mount to quickly mount the NanoStation M on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.



Wall/Pole Mounting Kit

The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation M. 90° tilt adjustment allows for easy positioning.
CertificationRoHS, FCC Part 15.247, IC RS210, CE
Depth30 mm
Ethernet LAN (RJ-45) ports2
Height294 mm
Operating temperature (T-T)-30 - 80 °C
Weight400 g
Width80 mm

NSM2.pdf

Ubiquiti Networks NSM2 Data Sheet

Download (7.54M)
