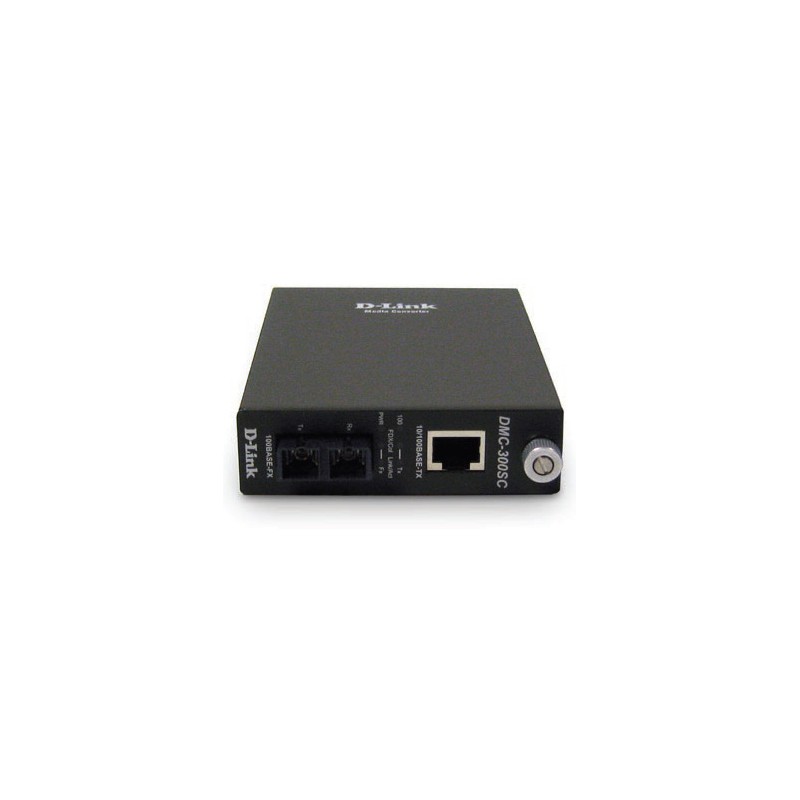

D-Link DMC-300SC
D-Link DMC-300SC D-Link DMC-300SC

D-Link DMC-300SC

100BASE-TX to 100BASE-FX Multimode SC Media Converter

DMC-300SC/E

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Designed to convert 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa, the DMC-300SC offers conversion from fiber to copper to minimize cost and extend hauls.



The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilizing the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended
CertificationFCC Class B, VCCI Class B, CE Class B
Operating temperature (T-T)0 - 40 °C
Weight300 g

DMC-300SCE.pdf

D-Link DMC-300SC Data Sheet

Download (84.51k)
