Axis M5055
Axis M5055 Axis M5055

Axis M5055

1/4.85” CMOS, H.264, 1920x1080, 25/30 fps, PTZ, 2.2–11.0 mm, F1.4–F2.5, IP51, microSD, RJ-45, 130x63 mm

01081-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

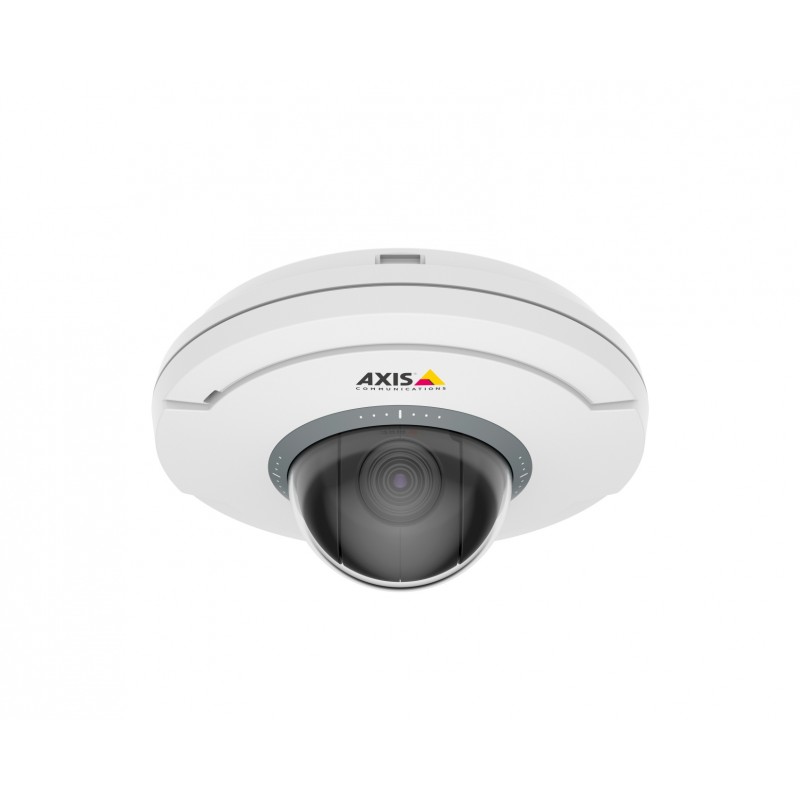

AXIS M5055 PTZ Network Camera is an ultra-discreet, palm-sized, pan-tilt-zoom camera for remote indoor monitoring.

It provides full frame rate video in HDTV 1080p resolution, and supports multiple H.264 and Motion JPEG video streams.

AXIS M5055 is a ceiling-mount camera that provides flexible coverage over a 500 m² (4300 sq. ft) area with ±180° pan,

90° tilt, and 5x optical zoom. The IP51 rating ensures protection against dust and dripping water, enabling the camera

to operate even when a sprinkler system is activated.



- HDTV 1080p

- 5x optical zoom and autofocus

- IP51-rated

- Power over Ethernet (IEEE 802.3af)

- Built-in analytics
BluetoothN
CertificationEN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN-35; IEC/EN/UL 62368-1; IEC/EN 60529 IP51
Connectivity technologyWired
Ethernet LANY
Form factordome
Frame rate30 fps
Height63 mm
Housing materialPlastic
International Protection (IP) codeIP51
IP address filteringY
Maximum resolution1920 x 1080 pixels
Minimum illumination1.2 lx
Mounting typeCeiling
Operating temperature (T-T)0 - 45 °C
Optical sensor size1/4.85 "
Password protectionY
Placement supportedIndoor
Power source typePoE
Sensor typeCMOS
Supported network protocolsDIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Viewing angle, horizontal71 °
Viewing angle, vertical40 °
Weight375 g
Wi-FiN
Wide Dynamic Range (WDR)Y
Number of cameras1
Privacy maskingY
Video streamingY

01081-001.pdf

Axis M5055 Data Sheet

Download (347.6k)
