Axis P3915-R Mk II
Axis P3915-R Mk II Axis P3915-R Mk II Axis P3915-R Mk II Axis P3915-R Mk II Axis P3915-R Mk II Axis P3915-R Mk II

Axis P3915-R Mk II

1/2.9” CMOS, 3.6 mm, F2.0, 1080p 25/30 fps, H.264, PTZ, RJ-45, 3.5mm, 12 V DC, microSD, 49x109 mm, 255g, 10 pcs

01074-021

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

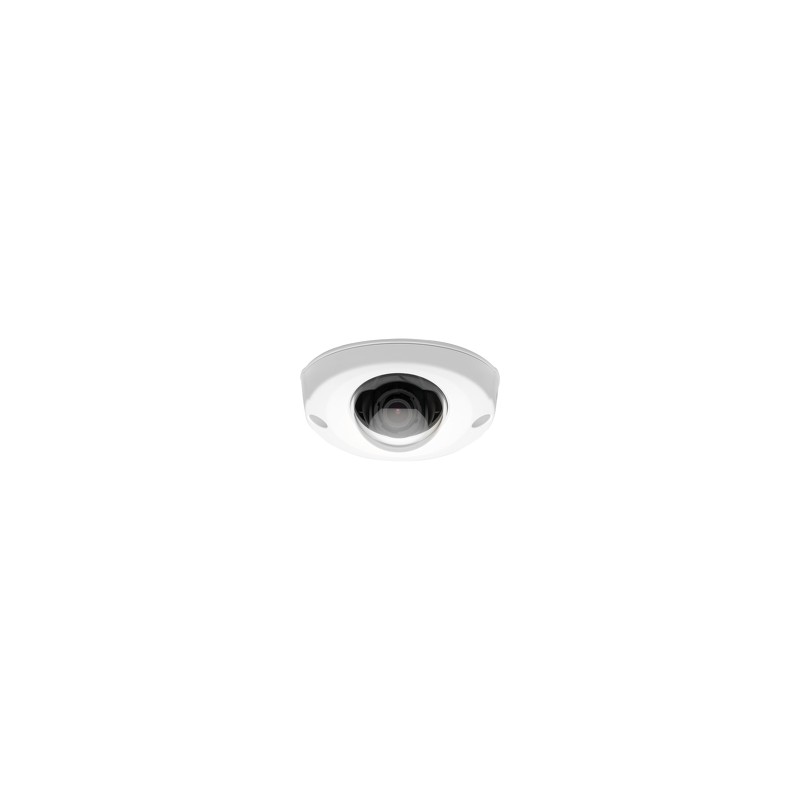

AXIS P3915-R Mk II Network Camera is a high-performance network camera specifically designed for mobile video surveillance on board vehicles and rolling stock like buses, trains, subway cars, and emergency vehicles. The camera features protection against dust and water, and it can withstand tough conditions such as vibrations, shocks, bumps, and temperature fluctuations. But best of all, thanks to Axis technology for challenging lighting and Axis Zipstream technology, AXIS P3915-R Mk II captures full forensic detail while minimizing bandwidth and storage requirements.



Excellent onboard image quality

AXIS P3915-R Mk II is specially adapted to deliver sharp HDTV 1080p image quality onboard moving vehicles with varied and fast-shifting light levels. The camera features WDR – Forensic Capture for clarity when there are both dark and light areas in the scene, and Axis Lightfinder technology for color images even in near darkness. Traffic Light mode helps to better delineate the color of traffic lights in very dark scenes.

For maximum flexibility, there are a variety of accessory lens options for AXIS P3915-R Mk II. They range from 147° to 40° horizontal field of view (FOV) with 87° as a standard lens.



Cut the storage. Not the quality.

AXIS P3915-R Mk II features Axis Zipstream technology, which reduces storage and bandwidth with up to 50%, while capturing important details in full image quality. The result is high-forensic usability, and significant savings, as well as a camera that’s perfect for onboard conditions.



Optimized for transportation

AXIS P3915-R Mk II complies with a long list of transportation-industry regulations including fire-safety, and EN50155:2017 Class OT2/ST2 (EN50155:2007 Class TX) standards. Its rugged design and ability to withstand a wide range of temperatures make the camera appropriate for tough onboard conditions. And with optional outdoor housing, M12 or RJ45 connectors available and a compact and discreet design, it’s flexible enough to be installed inside or out and in many different configurations. AXIS P3915-R Mk II also offers audio-in, and 4-pin digital I/O ports for integration with other equipment.



Quick and reliable installation

The camera is designed for quick and reliable installation. A lens tool that makes it easy to get a level image with the field of view you want is included. And it’s easy to upgrade from earlier camera versions from the series.



- Compact, rugged design

- Complies with EN50155

- WDR and Lightfinder

- Zipstream

- Traffic Light mode

- Audio and I/O
BluetoothN
CertificationEN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 5 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 05 (E), EN 50498, IEC/EN/UL 62368-1, EN 45545, UN ECE R118, NFPA 130c; IEC/EN 60529 I
Connectivity technologyWired
DC output voltage12
Ethernet LANY
Form factordome
Frame rate30 fps
Height49 mm
Housing materialAluminium,Polycarbonate
International Protection (IP) codeIP67
IP address filteringY
Maximum resolution1920 x 1080 pixels
Minimum illumination0.06 lx
Mounting typeCeiling
Operating temperature (T-T)-40 - 60 °C
Optical sensor size1/2.9 "
Password protectionY
Placement supportedOutdoor
Power source typeDC,PoE
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Viewing angle, horizontal87 °
Viewing angle, vertical49 °
Weight255 g
Wi-FiN
Wide Dynamic Range (WDR)Y
Number of cameras10
Privacy maskingY
Video streamingY

01074-021.pdf

Axis P3915-R Mk II Data Sheet

Download (466.2k)
