Axis XP40-Q1765 CCOE
Axis XP40-Q1765 CCOE Axis XP40-Q1765 CCOE

Axis XP40-Q1765 CCOE

IP, CMOS 1/2.9", f=4.7–84.6 mm, 1920x1080, PTZ, WDR, Day/Night, 256 MB RAM, 128 MB Flash

0836-081

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Combining technologies

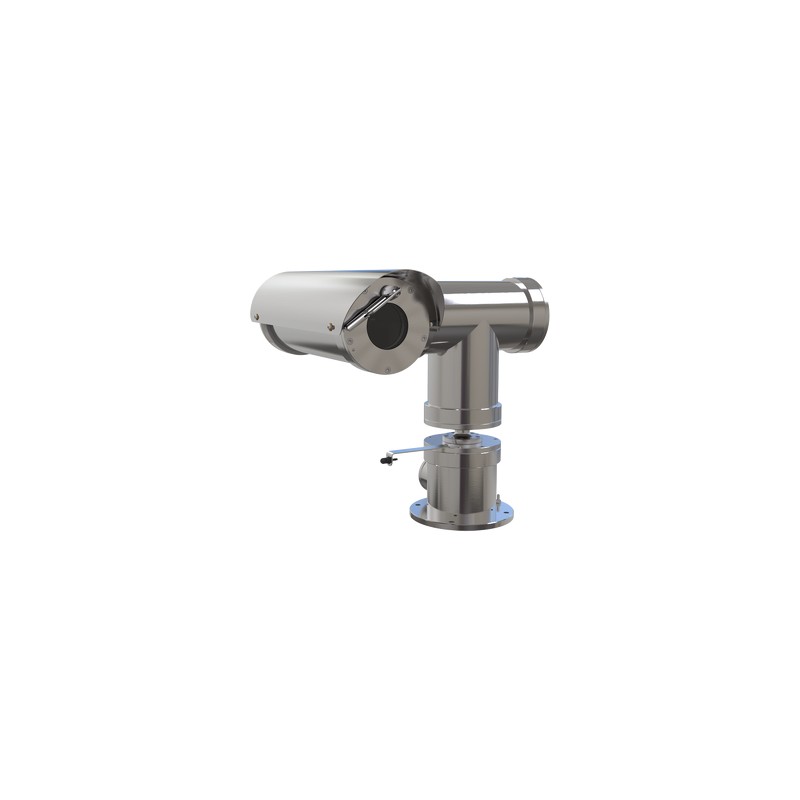

XP40-Q1765 Explosion Protected PTZ Network Camera is an AXIS Q1765-LE Network Camera (excl. IR LEDs and SD card, incl. wiper and support for washer, as well as pan/tilt) mounted inside an explosion protected stainless steel PTZ housing. The camera provides superb image quality and color fidelity, and offers Full HDTV 1080p resolution at 25/30 fps. With 18x optical zoom and autofocus, the camera is ideally suited for remote monitoring situations common in hazardous areas.



The camera features an electro-polished 316L stainless steel housing certified for hazardous areas according to, among others, ATEX and IECEx. The PTZ camera delivers 360º endless rotation with up to 45º/s pan speed and ±90° tilt with up to 24º/s tilt speed.



Critical infrastructure



XP40-Q1765 is ideally suited for large area video surveillance monitoring in hazardous areas in critical infrastructure such as onshore, offshore and marine environments in the oil and gas industry. In addition, typical application areas are also dusty environments in other industries, for example, paper and textile industries, and grain handling.



Wide temperature range



The outdoor-ready XP40-Q1765 comes in two product versions, depending on the required temperature range: either up to +60 ºC (+140 ºF) or down to -60 ºC (-76 ºF). A removable weather shield is supplied with the camera.



Flexible integration and remote accessibility



XP40-Q1765 provides a high level of flexible integration possibilities with other equipment, such as access control, illumination and audio. It offers remote accessibility, using any existing IP-based networks. XP40-Q1765 for hazardous areas is a complement to Axis’ wide range of network cameras that can be used in safe areas.
CertificationEN 55022 Class A, EN 61000-3-2, EN 61000-3-3,\nEN 55024, EN 61000-6-1, EN 61000-6-2,\nFCC Part 15 Subpart B Class A, ICES-003 Class A,\nC-tick AS/NZS CISPR 22 Class A, IEC/EN 60950-1,\nIEC/EN 60950-22, EN 50121-4, IEC/EN 60529 IP66,\nNEMA 250 Type 4x, IEC
Connectivity technologyWired
Day/night modeY
Depth512 mm
Ethernet LANY
Form factorbullet
Height480 mm
Housing materialStainless steel
HTTPS encryptionY
International Protection (IP) codeIP67
IP address filteringY
Maximum resolution1920 x 1080 pixels
Minimum illumination0.04 lx
Mounting typeCeiling/wall
Operating temperature (T-T)-60 - 40 °C
Optical sensor size1/2.9 "
Placement supportedOutdoor
Power source typeAC
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMP v1/v2c/v3 (MIB-II),DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP,DHCP, ARP, SOCKS, SSH
Video compression formatsH.264,M-JPEG,MPEG4
Viewing angle, horizontal59 °
Viewing angle, vertical35 °
Weight50000 g
Wide Dynamic Range (WDR)Y
Width475 mm
Number of cameras1
