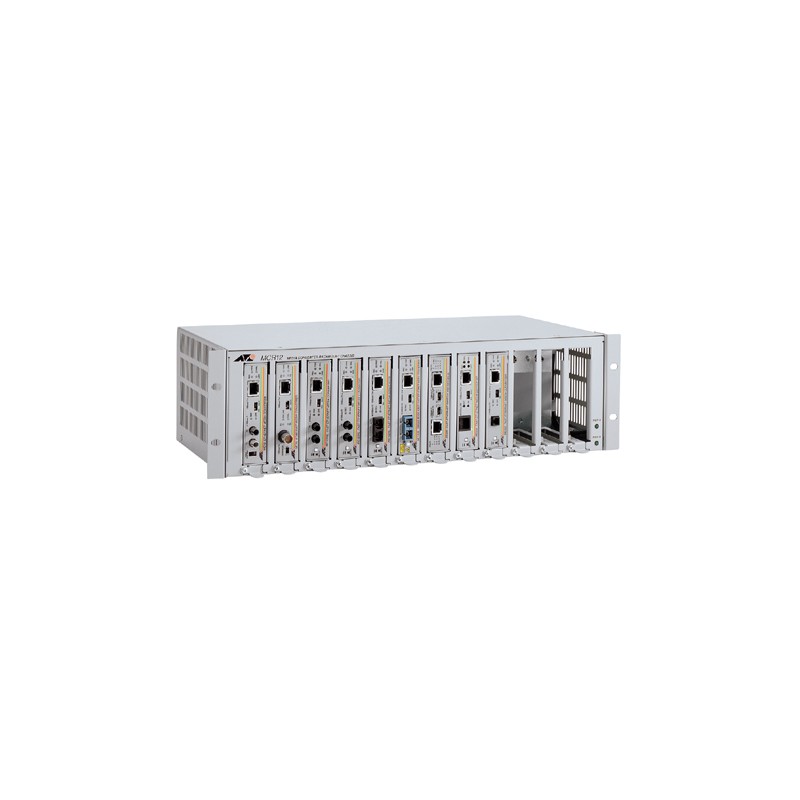

Allied Telesis AT-MCR12 Media Conversion Rack-mount Chassis
Allied Telesis AT-MCR12 Media Conversion Rack-mount Chassis Allied Telesis AT-MCR12 Media Conversion Rack-mount Chassis

Allied Telesis AT-MCR12 Media Conversion Rack-mount Chassis

AT-MCR12 Media Conversion Rack-mount Chassis

AT-MCR12

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Media Converter Flexibility

Supporting up to 12 Allied Telesis media converters, the AT-MCR12 enables network managers to use the MC1x family (10Mbps) or MC10x family (100Mbps) media converters in the same chassis.

Power Options

A single internal universal power supply powers the AT-MCR12, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot-swappable power supply to eliminate downtime on the network. The unit saves space in the wiring closet and minimizes the number of power connections required. Single-unit media converters can be removed from the AT-MCR12 and deployed individually in

order to accommodate network modifications. By incorporating a backplane with 12 different power entry modules integrated with the

printed circuit board, power is equally distributed among all media converters whether using one or two power supplies.

Rack-mount Design

Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail. The rack-mount chassis includes two status LEDs on the front panel indicating power status.The top LED is titled PWR A and the

bottom PWR B. The back panel has one LED for power. When a redundant power supply is installed, a second LED is visible.

The AT-MCR12 is configured with one of the following power cords to meet regional requirements for North America, Continental Europe, or the United Kingdom.

Key Features

- Modular use with all standalone Media and Bridging Media Converters.

- Simple installation.

- 12 Slot unit.

- Optional redundant hot-swappable power supply ensures reliability.

- Free technical support.
CertificationFCC Class A, IC Class A
Operating temperature (T-T)0 - 40 °C
SafetyUL, CSA, TUV, IEC 825-1, CE
Weight4300 g

AT-MCR12.pdf

Allied Telesis AT-MCR12 Media Conversion Rack-mount Chassis Data Sheet

Download (64.92k)
