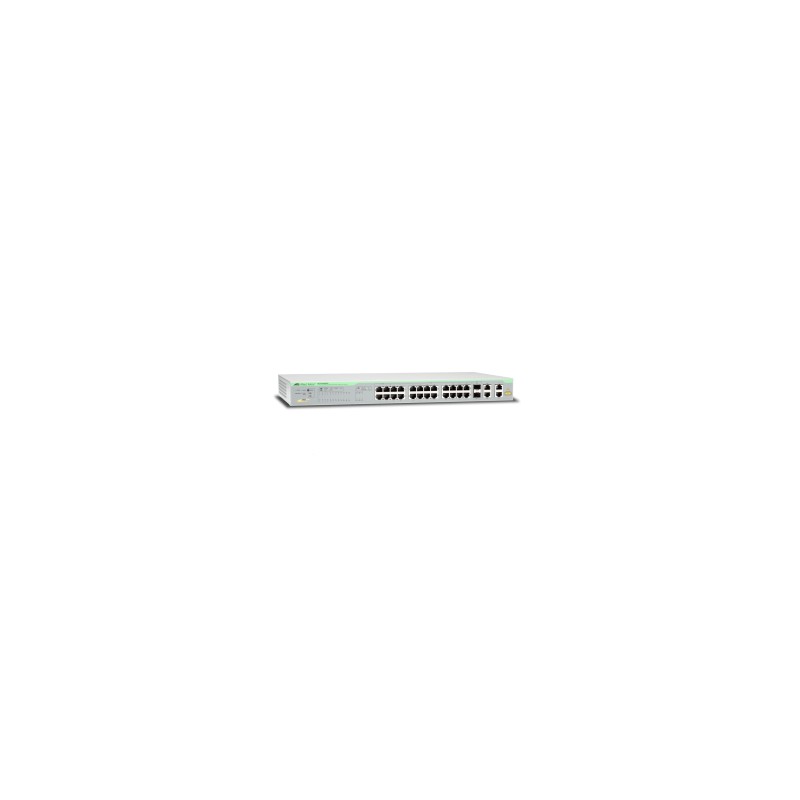

Allied Telesis AT-FS750/28PS
Allied Telesis AT-FS750/28PS Allied Telesis AT-FS750/28PS

Allied Telesis AT-FS750/28PS

24 + 4, PoE+, VLAN, FTP, HTTP, MIBs, DHCP, SFP, MTBF 263000 h, IEEE 802.3/802.3u/ 802.3z/ab/802.3x/802.1p/ 802.1x/802.1d/802.3ad/802.1Q/802.1w/802.1s

AT-FS750/28PS

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Allied Telesis AT-FS750/28PS WebSmart network switch features PoE+ for connectivity with security cameras, VoIP phones, RFID readers, and wireless access points. The FS750PS Series is a costeffective solution for SMB, retail stores, and at the edge of the network.



Ease of Management and High Performance

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the

performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users

to integrate management at the edge of their networks. With user-friendly web-based management, the FS750

Series is an ideal option for integrating simple management and security into a network solution.



Power over Ethernet Plus (PoE+)

The FS750/28PS has 24 ports of 10/100TX, all PoE capable. The first four ports of the switch are PoE+ capable, up to 30W. The total PoE power budget is 193W across all 24 ports.



PoE allows users to network and power a device, using a single Ethernet cable, thus eliminating the need for additional

power outlets and simplifying the network installation. Also, this system is unaffected by any local variance in AC power, offering a standardized power infrastructure. PoE+, with up to double the power of regular PoE, provides superior power-management capability, as automatic power allocation can be made on the exact requirement of the power device at any given time.
10G supportN
CertificationRoHS, Eu-RoHS, China RoHS, WEEE
Fiber typeMulti-mode
Operating temperature (T-T)0 - 40 °C

AT-FS75028PS.pdf

Allied Telesis AT-FS750/28PS Data Sheet

Download (746.35k)
