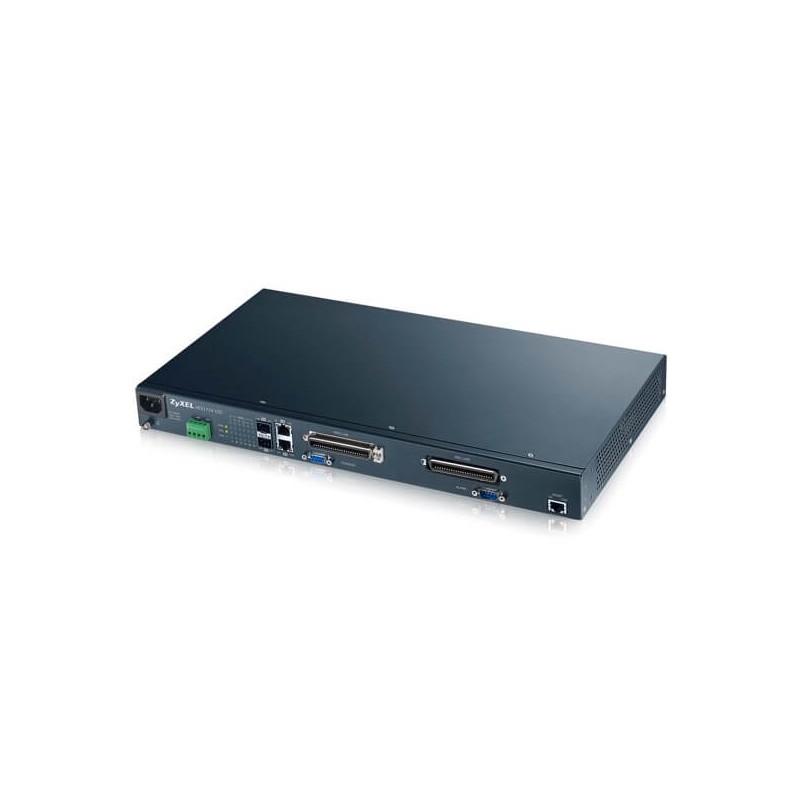

ZyXEL VES1724-55C
ZyXEL VES1724-55C ZyXEL VES1724-55C

ZyXEL VES1724-55C

24-port VDSL2 DSLAM, with ETSI/ANSI splitter built-in, temperature hardened, dual power (-40°C to +65°C), fanless type, 16K MAC, IGMP, MVR, RMON, SNMP, 1U, 19”, 440 x 250 x 44.35 mm

VES1724-55C-EU01V1F

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Compliant with ITU-T G.993.2, G994.1, G.997.1, G.998.4 G.inp, and G.993.5 vectoring

The VES1724-55C conforms to G.993.2, G994.1 G.997.1, G.998.4 G.inp, and G.993.5 vectoring to ensure the interoperability with standard-compliant VDSL CPE.



Ultra high-speed transmission with 17a profile support

The VES1724-55C supports 17a profile with 100 Mbps in downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724-55C can support low-concentration interconnection from the subscriber ports to the network interface ports.



Triple Play ready

The VES1724-55C supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video.The VES1724-55C also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724-55C allows the operators to provide Triple Play services over the same copper wire.



Complete QoS for service differentiation

The VES1724-55C supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.
CertificationFCC Part 15 Class A, EN55022 Class A, ETSI300-386, RoHS, K.20, ETSI300-019
Depth250 mm
Form factor1U
Height44.35 mm
Operating temperature (T-T)-40 - 65 °C
SafetyEN60950-1, CSA60950-1,
Weight4700 g
Width440 mm

VES1724-55C-EU01V1F.pdf

ZyXEL VES1724-55C Data Sheet

Download (1.42M)
