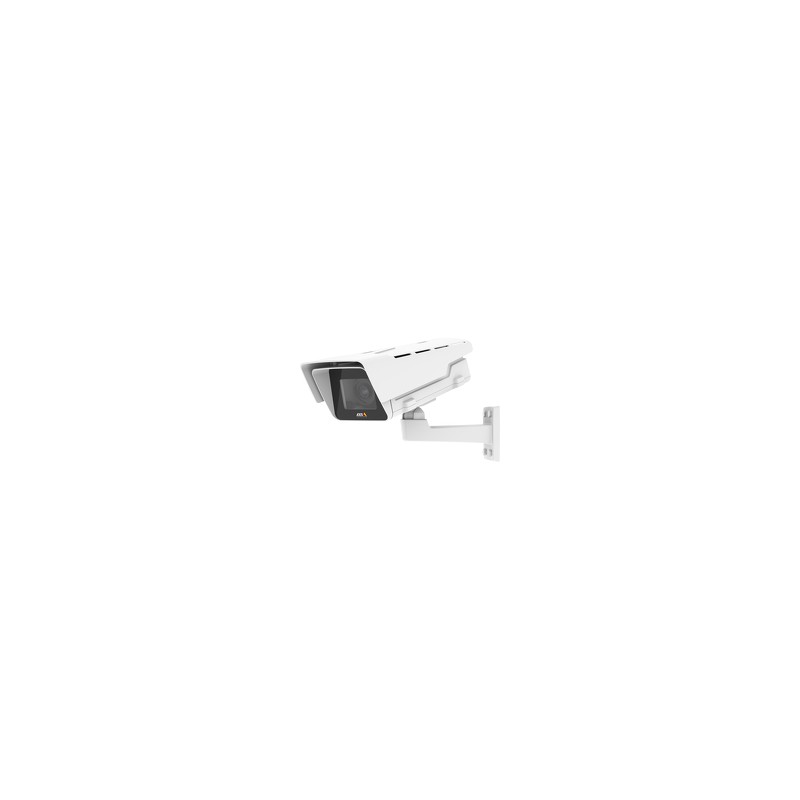

Axis P1368-E
Axis P1368-E Axis P1368-E

Axis P1368-E

1/2.5” progressive scan RGB CMOS, 3840x2160, 8 MP, PTZ control, 25/30 fps, IP 66/IP67, White

01109-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Get the whole picture



AXIS P1368-E gives you 4K resolution and the option to choose the lens that best suits your surveillance needs – like a lens for longer-distance coverage, for example. AXIS P1368-E also provides images that are optimized for forensic purposes regardless of light conditions: It offers outstanding light sensitivity and Axis Lightfinder technology for high-quality – color – images even when they’re recorded in near darkness. Intelligent i-CS technology offers exceedingly precise iris control for the clearest images possible in changing light. And Forensic WDR provides great detail when there are both bright and darker areas in a scene.



AXIS P1368-E is ready for outdoor installation in tough environments. It can withstand temperatures as low as -40 °C and as high as 55°C (-40 °F to 131 °F). And with IP66, NEMA 4X and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. The housing also features an innovative new interior that allows plenty of room for bigger lenses. Switching to Corridor Format is easier than ever as well.



Sharp images. Low bandwidth



AXIS P1368-E features Axis Zipstream technology, which analyses the video stream in real time to identify areas of interest. These areas are compressed a bit less than other areas, preserving important details in full image quality, while reducing storage and bandwidth by up to 50%. The result is high-quality images and significant savings.
Connectivity technologyWired
Depth155 mm
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Form factorbullet
Height120 mm
HTTPS encryptionY
International Protection (IP) codeIP67
IP address filteringY
Maximum resolution3840 x 2160 pixels
Minimum illumination0.03 lx
Mounting typeWall
Night visionY
Operating temperature (T-T)-40 - 55 °C
Optical sensor size1/2.5 "
Placement supportedIndoor & outdoor
Power source typePoE
Sensor typeCMOS
Supported network protocolsPv4/v6, HTTP , HTTPS a , SSL/TLS a , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP™, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SFTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH
Video compression formatsH.264
Viewing angle, horizontal72 °
Viewing angle, vertical40 °
Weight2200 g
Width382 mm
Number of cameras1

01109-001.pdf

Axis P1368-E Data Sheet

Download (290.56k)
