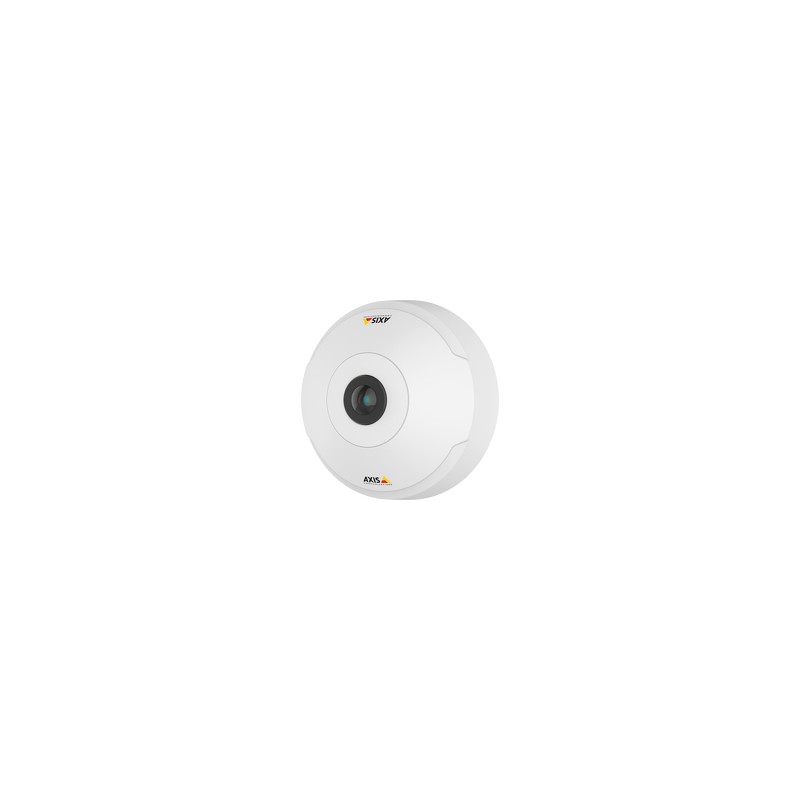

Axis Companion 360
Axis Companion 360 Axis Companion 360

Axis Companion 360

6 MP, 1/1.8" RGB CMOS, 360°, RJ-45, HDMI, PoE, ø 101 x 46 mm

01024-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Indoor 6 MP 360° panoramic network camera

- 360° panoramic view with 6 MP sensor

- Compact design for easy wall or ceiling installation

- Advanced client de-warping and digital pan, tilt and zoom

- Supports microSD card and Axis Zipstream technology

- HDMI support enables streaming to a monitor



360° indoor surveillance

From retail stores to small offices, AXIS Companion 360 is ideal for any location where high quality overview surveillance helps protect your business.



Get the best view

With one single camera, you get outstanding 360° panoramic overview of smaller premises. With its 6 MP sensor and full frame rate (up to 30 fps), AXIS Companion 360 gives you complete and sharp overview. HDMI output allows for connection to monitors for display of live camera footage. Utilizing advanced client de-warping and digital pan, tilt and zoom – AXIS Companion 360 is your choice for optimal panoramic surveillance.



Simplified installation

The palm-sized AXIS Companion 360 can be easily installed on walls or ceilings. The camera is delivered factory-focused out of the box, so no focusing is required. The camera features PoE that allows one cable to provide both network connectivity and electrical power. And total costs are further reduced by Axis Zipstream technology, which preserves important details in full image quality, while reducing storage and bandwidth by up to 50%.
BluetoothN
CertificationEN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, \nIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, I
Connectivity technologyWired
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Form factordome
Frame rate30 fps
Height46 mm
Housing materialAluminium,Plastic
Maximum resolution2048 x 2048 pixels
Minimum illumination0.3 lx
Mounting typeCeiling/wall
Night visionN
Operating temperature (T-T)0 - 40 °C
Optical sensor size1/1.8 "
Placement supportedIndoor
Power source typePoE
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, CIFS/SMB, Bonjour, UPnPTM, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, HDMI 1.4b
Video compression formatsH.264
Viewing angle, horizontal185 °
Viewing angle, vertical185 °
Weight240 g
Wi-FiN
Wide Dynamic Range (WDR)Y
Number of cameras1
Privacy maskingY

01024-001.pdf

Axis Companion 360 Data Sheet

Download (177.96k)
