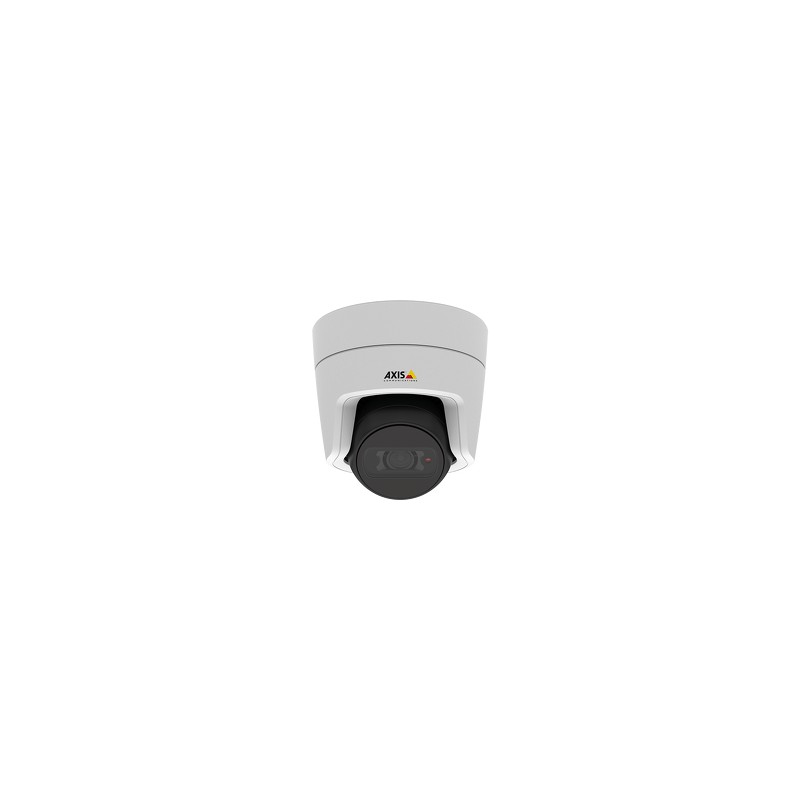

Axis M3106-L Mk II
Axis M3106-L Mk II Axis M3106-L Mk II

Axis M3106-L Mk II

1/3" CMOS, 2688x1520, 4 MP, Digital PTZ, IR, Zipstream, Fast Ethernet, PoE, IP42, White

01036-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

AXIS M3106-L Mk II is a flexible mini dome that gives you built-in IR illumination and 4 MP video quality at an attractive price. Our best-in-class product, it’s perfect at the back entrance of a store or hotel, for instance.



More light – or less?



With its built-in IR illumination AXIS M3106-L Mk II is ideal for situations where it’s sometimes dark or the lighting can be poor. Its innovative flat-faced design suppresses light reflections to maximize image usability when recording in the dark. AXIS M3106-L Mk II also offers Wide Dynamic Range (WDR) for excellent detail when light levels vary greatly, for example, at entrances with bright daylight outside and dimmer light inside.



Axis quality at an attractive price



AXIS M3106-L Mk II gives you sharp 4 MP image quality and a field of view of up to 130°. It features Axis Zipstream technology, enhanced with H.265 support as an option to H.264. Zipstream greatly reduces storage and bandwidth needs, while capturing important details in full image quality. AXIS M3106-L Mk II also supports video analytics such as Video Motion Detection and Active tampering alarm. Thanks to the AXIS Camera Application Platform, you can also choose to install AXIS Cross Line Detection, and AXIS Digital Autotracking, as well as third-party analytics solutions such as people counting.



Fits in anywhere



Small and flexible, AXIS M3106-L Mk II can be mounted on walls or ceiling as you prefer. Its smart design makes it easy to repaint to fit into any environment. And a long list of accessories, including black casing and various mounting kits, means it can be put up just about anywhere.
CertificationEN 55022 Class B, EN 55024, IEC 62471, EN 61000-6-1,\nEN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B,\nVCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class A,\nKN35\nIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78,\nIEC 60068-2-14, IEC 60
Connectivity technologyWired
Day/night modeY
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Form factordome
Height85 mm
Housing materialPolymer
HTTPS encryptionY
International Protection (IP) codeIP42
IP address filteringY
Maximum resolution2688 x 1520 pixels
Mounting typeCeiling/wall
Night visionY
Night vision distance15 m
Operating temperature (T-T)0 - 50 °C
Optical sensor size1/3 "
Power source typePoE
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Video compression formatsAVC,H.264,H.265,M-JPEG,MPEG4
Viewing angle, horizontal130 °
Viewing angle, vertical73 °
Weight350 G
Wi-FiN
Wide Dynamic Range (WDR)Y
Number of cameras1
Privacy maskingY
Video streamingY

01036-001.pdf

Axis M3106-L Mk II Data Sheet

Download (282.46k)
