Axis Q1659
Axis Q1659 Axis Q1659

Axis Q1659

55-250 mm, F/4-5.6, APS-C CMOS, 20 MP, H.264, M-JPEG, 5472x3648, 1 GB RAM, 256 MB, RJ-45, 3.5mm, RS-485/RS-422, SFP, microSD, 176x102x75 mm

01118-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

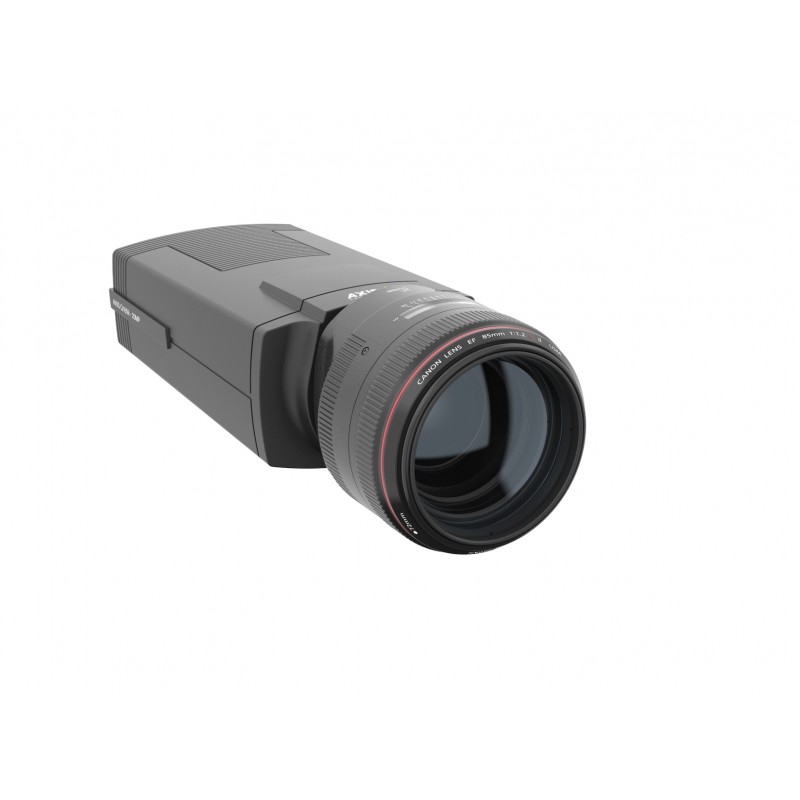

AXIS Q1659 Network Camera is an almost magical meeting of professional photography and video surveillance. Made to deliver superb images from great distances, it’s perfect for surveillance of large areas in amazing detail.



Superior images – packed with detail

AXIS Q1659 brings the ultra-high – 20 MP – resolution and the vivid colors, high contrast and extreme detail of a DSLR camera to a top-of-the-line Axis network camera. Featuring a Canon APS-C image sensor, it comes with a wide selection of Canon EF/EF-S lenses as well as Axis Lightfinder technology for high-quality color images even in darkness.



Reliability. Long-distances. Low bandwidth.

AXIS Q1659 is equipped with an SFP slot, for optional fiber-optic connection. Which means you get network redundancy and the flexibility to connect over long distances. In addition, Axis Zipstream technology lowers bandwidth and storage requirements by an average of 50% while preserving image quality.



Easy integration

AXIS Q1659 supports a wide range of video management software, so it’s easy to integrate into just about any video surveillance system. And you can add analytics applications from Axis and our partners to meet a wide range of security – and business – requirements.
BluetoothN
CertificationEN 55032 A, EN 50121-4, EN 55024, EN 61000-6-1, EN 61000-6-2, IEC 62236-4, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35, IEC/EN/UL 60950-1
Connectivity technologyWired
Day/night modeY
Depth102 mm
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Form factorbox
Frame rate25 fps
Height75 mm
Housing materialAluminium
HTTPS encryptionY
IP address filteringY
Maximum resolution5472 x 3648 pixels
Minimum illumination0.004 lx
Operating temperature (T-T)0 - 45 °C
Placement supportedIndoor
Power source typeDC,PoE
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsAVC,H.264,M-JPEG,MPEG4
Weight840 g
Wi-FiN
Width176 mm
Number of cameras1
Privacy maskingY

01118-001.pdf

Axis Q1659 Data Sheet

Download (366.37k)
