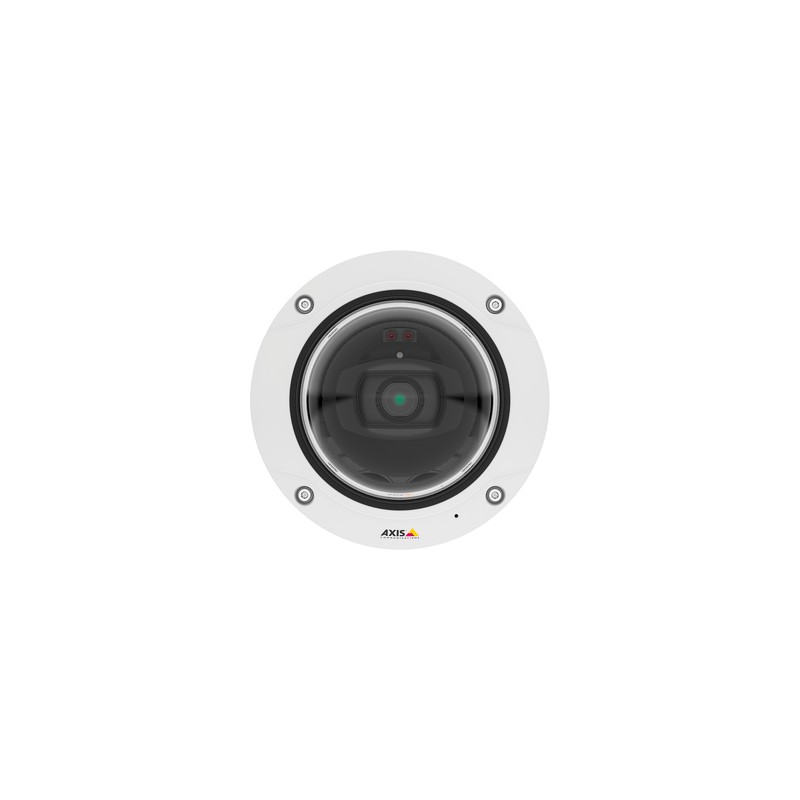

Axis Q3517-LV
Axis Q3517-LV Axis Q3517-LV Axis Q3517-LV Axis Q3517-LV

Axis Q3517-LV

5 MP, WDR, 1/1.8" RGB CMOS, 3072 x 1728 px, Digital PTZ, PoE, RJ-45, IP52, ø 161.8 x 123.6 mm

01021-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- 5 MP resolution at full framerate

- Forensic WDR, Lightfinder and OptimizedIR

- Axis Zipstream technology

- EIS, IK10 vandal resistance, IP52 water and dust protection

- Power with redundancy and configurable I/O ports



Are you looking for a discreet and robust network camera that delivers superior performance even in complex light and under challenging conditions? Whether it’s midnight or midday and no matter what the application, AXIS Q3517-LV Network Camera captures unparalleled video. Because it’s loaded with advanced functionality that supports all your surveillance needs.



Superior images packed with details

Simply put, AXIS Q3517-LV delivers the best video quality possible. It offers 5-megapixel resolution at full frame rate (up to 30 fps) with Forensic WDR. That means it delivers excellent detail – of moving objects and people – as well as of scenes with both extremely bright and extremely dark areas. Thanks to Lightfinder, you also get sharp, color images in low light. OptimizedIR ensures excellent low-noise video even in complete darkness. And Axis Zipstream technology preserves important details in full image quality, while reducing storage and bandwidth by 50% or more.



Ready for the rough stuff – every time

AXIS Q3517-LV is designed to be resistant to shock and vibrations, and its IP52-rated casing protects it against dust and water. The casing is also vandal resistant with IK10 rating. Electronic image stabilization keeps the picture steady when the camera is exposed to vibrations. And what’s more, even if there is a power outage, redundant DC power and Power over Ethernet helps ensure a reliable power supply to safeguard all your mission critical surveillance.



Crammed with extra features

External sensors and detectors can be connected to input ports to trigger alarms or actions. An alarm can even be sent if connections are cut, so you can decide how to respond fast. You can also use dynamic overlays, which now allows for more flexibility when adding information, such as text and images, to your video stream. In addition, an optional microphone is available for excellent audio capture. You can also download and install our AXIS Motion Guard and AXIS Fence Guard analytics software for free. AXIS Motion Guard triggers an alarm when movement is detected, making it ideal for surveillance of unattended areas. And AXIS Fence Guard lets you define your own virtual fences to protect specific areas and objects, and be notified if someone crosses the line.



Installation that’s as easy as 1, 2, 3

AXIS Q3517-LV makes installation and maintenance easy with several helpful tools such as leveling assistant, auto rotation, remote zoom and focus and straighten-image aid. AXIS Q3517-LV also features flexible cable management and optional connections to any conduit.
BluetoothN
CertificationEN 55032 Class A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC Part 15, Subpart B, Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 60950-1, IEC/EN 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-
Connectivity technologyWired
Day/night modeY
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Form factordome
Frame rate30 fps
Height123.6 mm
Housing materialAluminium,Polycarbonate
HTTPS encryptionY
International Protection (IP) codeIP52
IP address filteringY
Maximum resolution3072 x 1728 pixels
Minimum illumination0.02 lx
Mounting typeCeiling/wall
Night visionY
Night vision distance40 m
Operating temperature (T-T)-10 - 50 °C
Optical sensor size1/1.8 "
Placement supportedIndoor & outdoor
Power source typeDC,PoE
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Video compression formatsH.264
Viewing angle, horizontal96 °
Viewing angle, vertical53 °
Weight1400 g
Wi-FiN
Wide Dynamic Range (WDR)Y
Number of cameras1

01021-001.pdf

Axis Q3517-LV Data Sheet

Download (427.33k)
