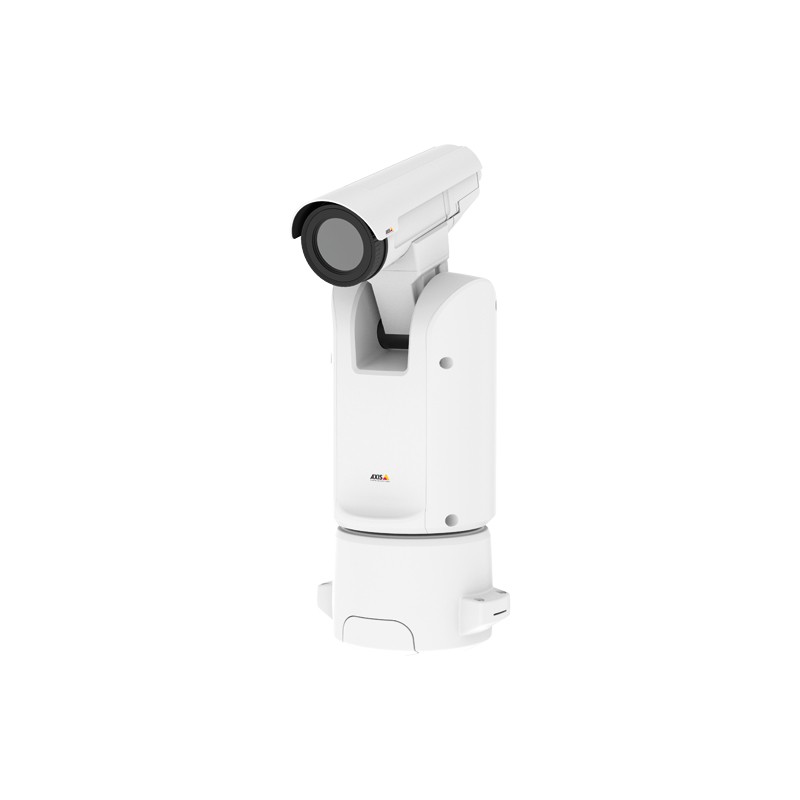

Axis Q8642-E
Axis Q8642-E Axis Q8642-E

Axis Q8642-E

60 mm, 8.3 fps, 24 V, H.264, M-JPEG, 512 MB RAM, 256 MB Flash, microSD, RJ-45, 557 x 229 x 289 mm

01122-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Sometimes you need a slow, steady pan. Other times it’s important to be on the spot in a flash. With the responsive AXIS Q8642-E PT Thermal Network Camera, you set the pace for unobstructed and far-reaching thermal detection of expansive outdoor areas.



AXIS Q8642-E’s powerful processor lets you add the strength of the market’s widest selection of video analytics solutions to your surveillance solution. For example, video analytics applications from Axis and our partners support swift and appropriate response to detected events by analyzing them, automatically dismissing non-threatening ones and instantly notifying security staff of potentially critical situations. Your staff can then view sharp, detailed footage to determine the precise nature of the threat – and act accordingly.



AXIS Q8642-E lets operators choose between really slow or super-fast pan (from 0.05 to 120 degrees per second) and tilt movement (from 0.05 to 65 degrees per second). So they get smooth and jerk-free panoramic viewing when they need it and can respond quickly to events. The camera can be column-mounted, on poles or walls for a 360° panoramic view and a ground-to-sky view from -90° to +45°. It can withstand high winds when it’s in motion of up to 47-meter per second (106 mph).



Far + wide + sharp = accurate

AXIS Q8642-E features VGA 640x480 thermal resolution for wide-area coverage and a long range: in other words, a single camera captures events taking place in a large area and at great distance. In addition, thanks to a combination of dynamic histogram equalization, enhanced local contrast and dynamic sharpening, AXIS Q8642-E improves image contrast for sharp video with great detail in all conditions. And electronic image stabilization keeps the picture smooth even when the camera is exposed to vibrations. The result is outstanding detection capabilities and fast and easy visual verification of the nature of detected events. You can either dismiss them – or do something about them – so false alarms are kept to a minimum.



Fast and easy

AXIS Q8642-E’s slim design and many available accessories let you install it anywhere you want. It has an SFP slot, so it supports cost-effective, long-distance fiber-optic connection. A 22 meter (72 feet) long, heavy-duty power cable is available as optional accessory. Designed for outdoor use, the cable has 3-wire, 12AWG and a jacket diameter of 10 mm (0.4 in).
BluetoothN
CertificationEN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, FCC 15 B A,\nVCCI A ITE, ICES-003 A, RCM AS/NZS CISPR 32 A, \nEN 50121-4, IEC 62236-4, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 60529 IP66, NEMA 250 4X, IEC 60068–2–1,
Connectivity technologyWired
DC output voltage24
Depth289 mm
Ethernet LANY
Frame rate8.3 fps
Height557 mm
Housing materialAluminium
International Protection (IP) codeIP66
Maximum resolution640 x 480 pixels
Mounting typeDesk/Wall
Operating temperature (T-T)-40 - 60 °C
Power source typeDC
Supported network protocolsIPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsH.264,M-JPEG
Viewing angle, horizontal10 °
Weight12200 g
Wi-FiN
Width229 mm
Number of cameras1

01122-001.pdf

Axis Q8642-E Data Sheet

Download (292.88k)
