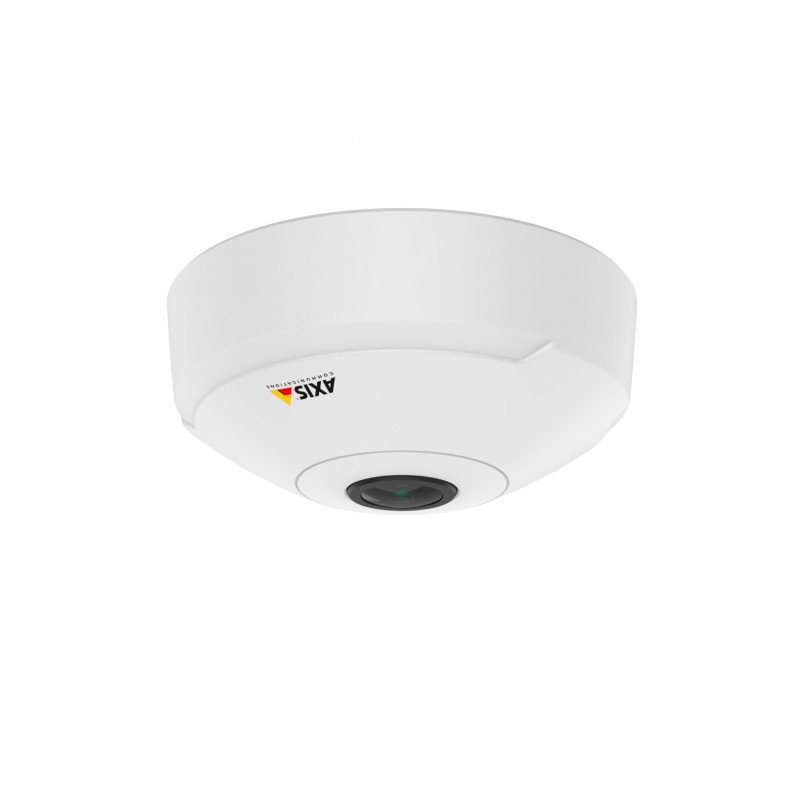

Axis M3048-P
Axis M3048-P Axis M3048-P Axis M3048-P Axis M3048-P Axis M3048-P Axis M3048-P

Axis M3048-P

1/1.7” RGB CMOS, F2.8, H.264, M-JPEG, 2880x2880, 1024 MB RAM, 256 MB Flash, microSD, PoE, RJ-45, HDMI D, 46x101 mm

01004-001

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Are you looking for an affordable and compact network camera that provides complete overview of your premises? From retail stores to small offices, AXIS M3048-P Network Camera is ideal for any location where high quality 360° video surveillance is required to help protect your assets.

Are you looking for an affordable and compact network camera that provides complete overview of your premises? From retail stores to small offices, AXIS M3048-P Network Camera is ideal for any location where high quality 360° video surveillance is required to help protect your assets.



Get the overview

AXIS M3048-P delivers outstanding 360° panoramic overview of smaller premises with a single camera. With its 12 MP sensor and full frame rate (up to 30 fps), it gives you complete and sharp overview, as well as allows you to zoom in to analyze live or recorded video footage. Whether an incident occurred in the middle of the space, or in a far corner, you can see distortion-free views of a specific area thanks to dewarping.



Compact and discreet

A sleek, no-dome design means AXIS M3048-P is easily concealed from view. AXIS M3048-P is made from environment-friendly recycled plastics, and there’s an optional black casing available. The camera can also be repainted to blend in discreetly and seamlessly with your interior color scheme. Smoke detector and vandal-resistant casings are also available as accessories. The former helps disguise the camera and the latter provides additional security and peace of mind.



Easy to install. Affordable to run.

Affordably priced AXIS M3048-P can be easily installed on walls or ceilings. It can also be mounted on a pendant or installed recessed with optional accessories. The camera is delivered factory-focused out of the box, so no focusing is required. And total costs are further reduced by Axis Zipstream technology, which preserves important details in full image quality, while reducing storage and bandwidth by up to 50%.
BluetoothN
CertificationEN 55024, EN 55032 A, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 22 A, KCC KN32 A, KN35, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
Connectivity technologyWired
Ethernet LANY
Form factordome
Frame rate30 fps
Height46 mm
Housing materialAluminium,Plastic
HTTPS encryptionY
IP address filteringY
Maximum resolution2880 x 2880 pixels
Minimum illumination0.35 lx
Mounting typeCeiling
Operating temperature (T-T)0 - 40 °C
Optical sensor size1/1.7 "
Power source typePoE
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Video compression formatsH.264,M-JPEG
Viewing angle, horizontal185 °
Viewing angle, vertical185 °
Weight240 g
Wi-FiN
Wide Dynamic Range (WDR)Y
Number of cameras1
Video streamingY
