Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm
Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm

Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm

Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm

N784-001-ST

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

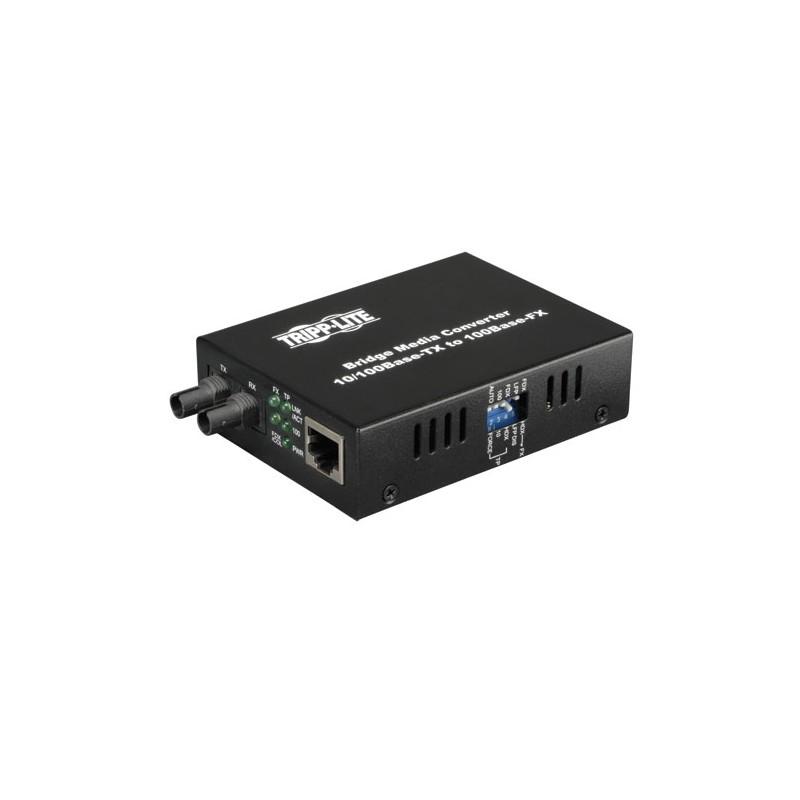

Tripp Lite's N784-001-ST, 10/100 Multimode Media Converter, is an economical way to extend the distance (up to 2Km) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection (switch selectable). Tripp Lite



- Convert UTP Ethernet to Fiber

- Supports Auto MDI/MDI-X

- Half- or Full-Duplex Operation

- 10/100 Auto-sensing

- Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet

- Auto MDI/MDI-X

- UTP port auto-senses network speed

- Switch selectable half or full duplex operation on the fiber port

- Fiber lengths up to 2Km

- 2 Power Choices - AC-DC Adapter or USB

- 5 LED Function lights

- Uses 62.5/125 or 50/125 Multimode cable

- 3.75L x 2.75W x 1H

- Wavelength: 1310nm

- Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
Connectivity technologyWired
Depth95.25 mm
Ethernet LAN (RJ-45) ports1
Height25.4 mm
Width69.85 mm

N784-001-ST.pdf

Tripp Lite Fiber Optic - 10/100BaseT to 100BaseFX-ST Multimode Media Converter, 2km, 1310nm Data Sheet
