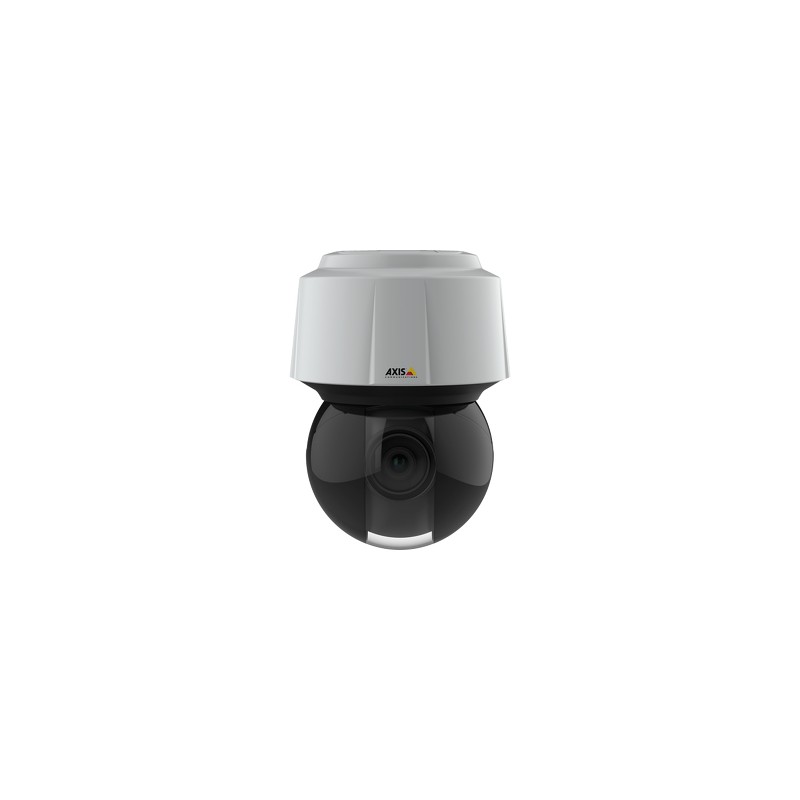

Axis Q6114-E 50Hz
Axis Q6114-E 50Hz Axis Q6114-E 50Hz Axis Q6114-E 50Hz

Axis Q6114-E 50Hz

1/3" Progressive Scan CMOS, HDTV 720p, WDR, PoE, IP66

0649-003

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- HDTV 720p and 30x optical zoom

- Axis' Sharpdome technology with Speed Dry

- Axis' Zipstream technology

- IP66-rated and NEMA 4X protection against dust, strong water jets and impact

- Shock detection

- Wide dynamic range 130dB

- High Power over Ethernet, max. 60 W



Designed for high-performing PTZ surveillance

AXIS Q6114-E is a compact and out-door-ready high-performing PTZ dome, offering HDTV 720p, 30x optical zoom, and fast and precise pan/tilt performance for wide area coverage and great detail when zooming in. It is ideal for airports, train stations, arenas, shopping malls, warehouses and manufacturing facilities. AXIS Q6114-E provides Lightfinder technology for exceptional performance in low-light conditions and Wide Dynamic Range to handle difficult lighting conditions and support electronic image stabilization—useful for getting smoother video in windy conditions. It also features Axis' Zipstream technology, which lowers bandwidth and storage requirements by an average of 50% or more while keeping the resolution, frame rate and forensic details. Zipstream automatically adapts to PTZ camera movements.



Clear identification with Axis Sharpdome technology

Axis’ Sharpdome technology with its innovative mechanics and a unique dome geometry provides sharp images in all directions and offer the unique possibility to identify objects as much as 20° above the camera horizon making these cameras suitable also for uneven terrain.



Axis Speed Dry function

The Sharpdome technology includes Axis' unique Speed Dry function that will help to provide sharp images in rainy weather. It can also simplify dome cleaning, allowing for more efficient methods such as high pressure cleaning. Reliable PTZ operation AXIS Q6114-E has IP66-rated protection against dust and strong water jets. The camera is designed for reliable, weatherproof installation with built-in protectionagainst dust, rain, snow and sunlight (IP66- and NEMA 4X-rated), and impact resistance (IK 08-rated). Additionally, the camera is further protected with shock detection, a capability that sends an alarm in the event of attempted vandalism.



Intelligent video

AXIS Q6114-E’s built-in video analytics include Active Gatekeeper, which enables the camera to automatically move to a preset position when motion is detected in a pre-defined area, and track the detected object. The camera also has substantial capacity for third-party intelligent video applications.
CertificationEN 55022 Class A, EN 55024, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR22 Class A KCC KN22 Class A, KN24, IEC/EN/UL 60950-1, IEC/EN/UL 609
Connectivity technologyWired
Depth165 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factordome
Frame rate60 fps
Height222 mm
Housing materialAluminium,Polycarbonate
HTTPS encryptionYes
International Protection (IP) codeIP66
IP address filteringYes
Maximum resolution1280 x 720 pixels
Minimum illumination0.001 lx
Mounting typeWall
Night visionNo
Operating temperature (T-T)-20 - 50 °C
Optical sensor size1/3 "
Placement supportedIndoor & outdoor
Sensor typeCMOS
Supported network protocolsIPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP
Video compression formatsH.264
Viewing angle, horizontal58.3 °
Viewing angle, vertical34.9 °
Weight2700 g
Wi-FiNo
Wide Dynamic Range (WDR)Yes
Width165 mm
Number of cameras1
Privacy maskingYes

0649-003.pdf

Axis Q6114-E 50Hz Data Sheet

Download (312.93k)
