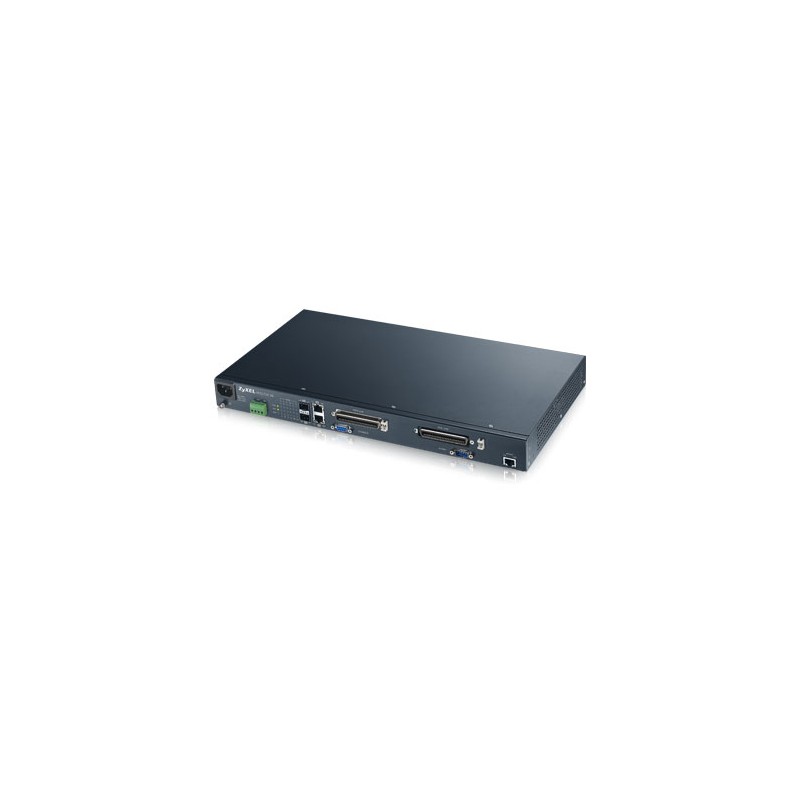

ZyXEL VES1724-56B2-EU01V1F
ZyXEL VES1724-56B2-EU01V1F ZyXEL VES1724-56B2-EU01V1F ZyXEL VES1724-56B2-EU01V1F ZyXEL VES1724-56B2-EU01V1F ZyXEL VES1724-56B2-EU01V1F

ZyXEL VES1724-56B2-EU01V1F

16K MAC, IGMP, MVR, RMON, SNMP, 1U, 19”, 440 x 250 x 44.35 mm

VES1724-56B2-EU01V1F

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Compact and Full-featured VDSL2 Technology



Compliant with ITU-T G.993.2, G994.1 and G.997.1



The VES1724 conforms to G.993.2, G994.1 and G.997.1 to ensure the interoperability with standard-compliant VDSL CPE.



Ultra high-speed transmission with 30a profile support



The VES1724 supports 30a profile with 100 Mbps in both upstream and downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724 can support low-concentration interconnection from the subscriber ports to the network interface ports.



Triple Play ready



The VES1724 supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The VES1724 also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724 allows the operators to provide Triple Play services over the same copper wire.



Complete QoS for service differentiation



The VES1724 supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.
Depth250 mm
Form factor1U
Height44.35 mm
Operating temperature (T-T)-40 - 65 °C
Weight4700 g
Width440 mm
