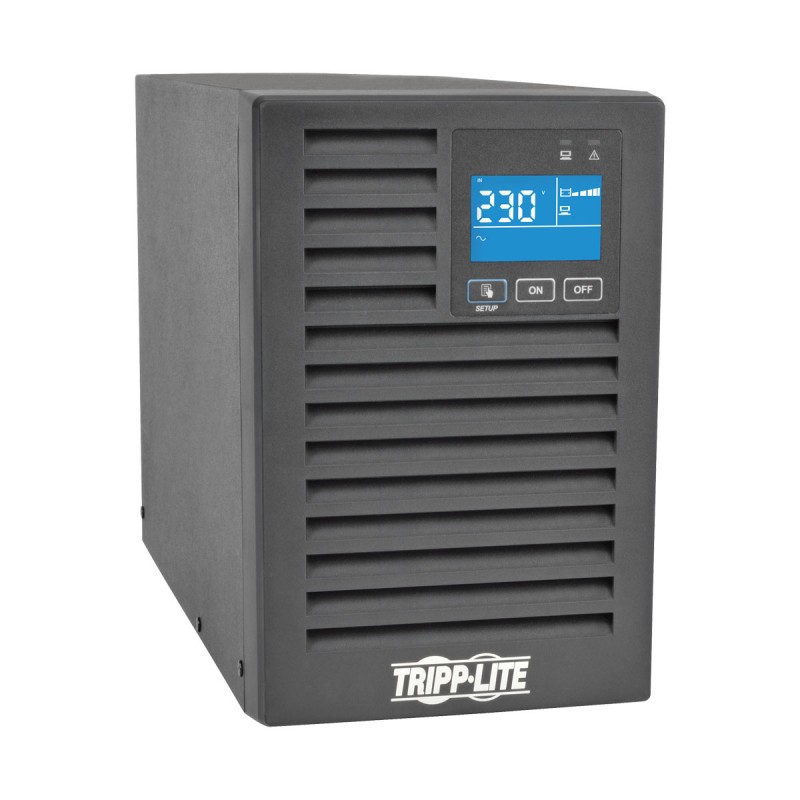

Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9
Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9 Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9 Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9 Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9 Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9 Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9

Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9

1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9

SUINT1000XLCD

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The SUINT1000XLCD SmartOnline® 230V 1kVA 900W On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online, double-conversion mode.



Featuring four C13 outlets, the SUINT1000XLCD has an internal battery that provides 12.8 minutes of support at half load (450W) and 4.8 minutes at full load (900W). Adding external battery packs, such as BP24V15RT-2U (sold separately), provides extended runtime. Operating in optional economy mode reduces heat output and cooling requirements and consumes less electricity.



An interactive front-panel LCD screen displays operating conditions and diagnostic data, such as load, voltage and battery levels. An audible alarm signals UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions.



EMI/RFI line noise filtering improves your equipment’s performance, and surge suppression prevents equipment and data damage from harmful power surges. With Tripp Lite’s PowerAlert® software, available via free download, SUINT1000XLCD enables safe unattended system shutdown and file saves in case of a prolonged power failure. A built-in card slot supports TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD for network interface and remote monitoring and control.



Protects Mission-Critical Rack-Mounted Equipment



● Provides fully regulated sine wave AC output for small/medium servers, networking equipment and telecom systems

● +/-2% voltage regulation in online, double-conversion mode

● 230V output voltage

● High 0.9 power factor offers 1000VA/900W output capacity

● 4 C13 outlets

● Set of 2 C13/C14 jumpers included



Reliable Battery Backup with Expandable Runtime



● Supports half load for 12.8 min. and full load for 4.8 min.

● Zero transfer time suitable for advanced network applications

● Expandable runtime with optional external battery packs, such as Tripp Lite’s BP24V15RT-2U

● Restarts automatically after lengthy power outages



SNMP/Web Capability



● Built-in slot for SNMP network interface and relay card for remote monitoring and control options

● Compatible with TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD



EMI/RFI Line Noise Filtering



● Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance



Interactive LCD Screen



● Reports detailed status information, including load, voltage and battery levels



Audible Alarm



● Indicates startup/shutdown, power failure, low battery, overload and fault conditions



Communications Ports



● USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert



Optional Economy Mode



● Efficiently minimizes heat output, reduces cooling requirements and consumes less electricity
CertificationIEC 62040-1;2008+A1:2013; EN62040-2:2006; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4
Depth320 mm
DisplayLED
Form factorTower
Height226 mm
MaterialSteel
Operating temperature (T-T)0 - 40 °C
Weight9660 g
Width145 mm

SUINT1000XLCD.pdf

Tripp Lite 1000VA 900W SmartOnline 230V On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9 Data Sheet

Download (531.74k)
