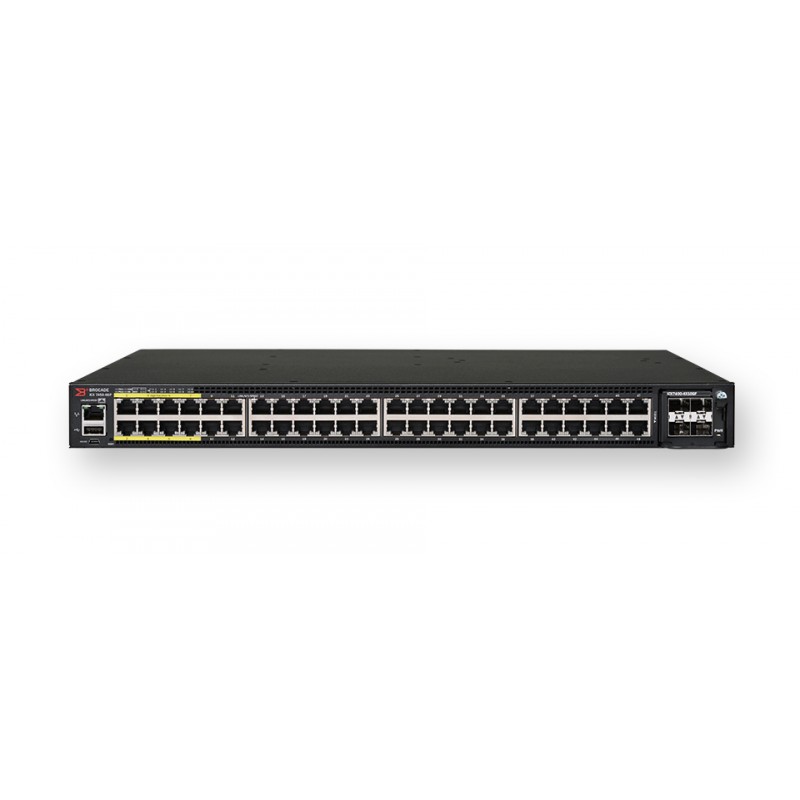

Brocade ICX 7450
Brocade ICX 7450 Brocade ICX 7450

Brocade ICX 7450

L3, RJ45 x 48, 2×40 GbE QSFP+, 336 Gbps, PoE+, 49 dB

ICX7450-48P-STK-E

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

A Fixed Form Factor Switch with Unmatched Modularity

You need high performance. You want an economical starting point with flexible growth and security options. Done. The Brocade ICX 7450 Switch gives you unprecedented scale-out density with enterprise-class availability. Plus SDN support, a service module for IPsec VPN, and 40GbE uplinks. All in a stackable design that lets you add switches and services anywhere in your network and manage them as a single device.



Ultimate Flexibility for Your Network Needs

- Uplink speeds of 1GbE, 10GbE or 40GbE and support for 10GBASE-T and 2.5GbE ports

- Fiber and Copper Cabling options

- 40 GbE Standards based stacking links – no special cables needed

- Power video surveillance, VDI terminals, and HD displays directly from the switch with PoH support



Unprecedented Stacking Scalability

- Up to 12 switches per stack and up to 10km between stacked switches

- Up to 160 Gbps of stacking bandwidth

- Stacking connectivity through open standards QSFP+ ports

- Stacking through standard QSFP+ and SFP+ ports - no special cables needed
Depth393.7 mm
Form factor1U
Height43.7 mm
Operating temperature (T-T)-5 - 50 °C
Weight7200 g
Width440 mm
