Aten CS1912
Aten CS1912 Aten CS1912 Aten CS1912 Aten CS1912 Aten CS1912

Aten CS1912

2x USB A, 2x USB3.1 B, 3x DisplayPort, 4x 3.5mm, DC, 210 x 88 x 55.5 mm, 730 g

CS1912

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

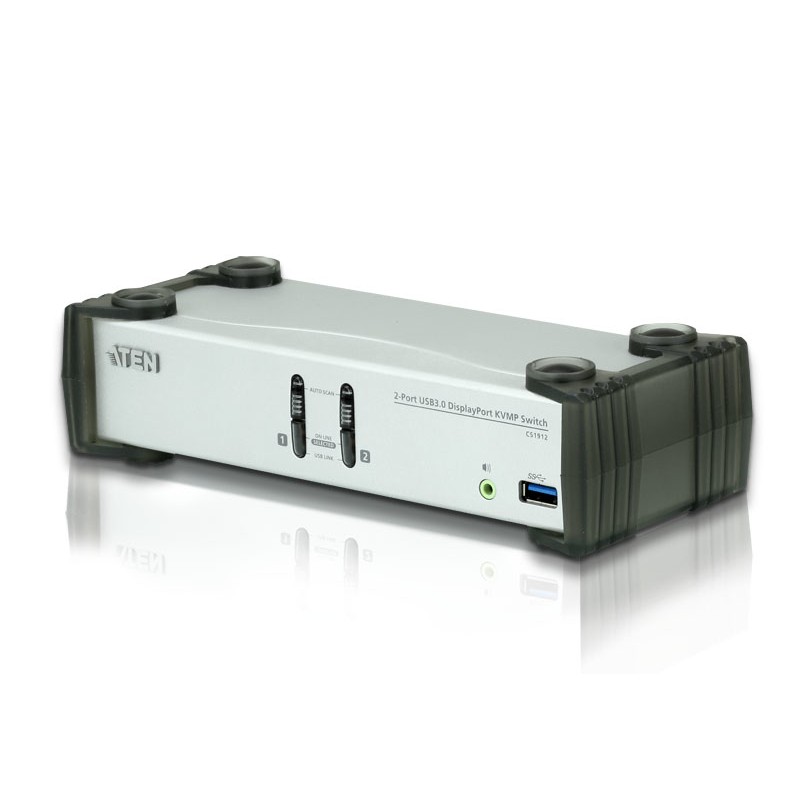

The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.



As a KVM switch, the CS1912 gives users access to two DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.



ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.



With its rich feature set, the CS1912 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
Depth210 mm
Height55.5 mm
MaterialMetal,Plastic
Maximum resolution3840 x 2160 pixels
Operating temperature (T-T)0 - 50 °C
Weight730 g
Width88 mm

CS1912.pdf

Aten CS1912 Data Sheet

Download (2.05M)
